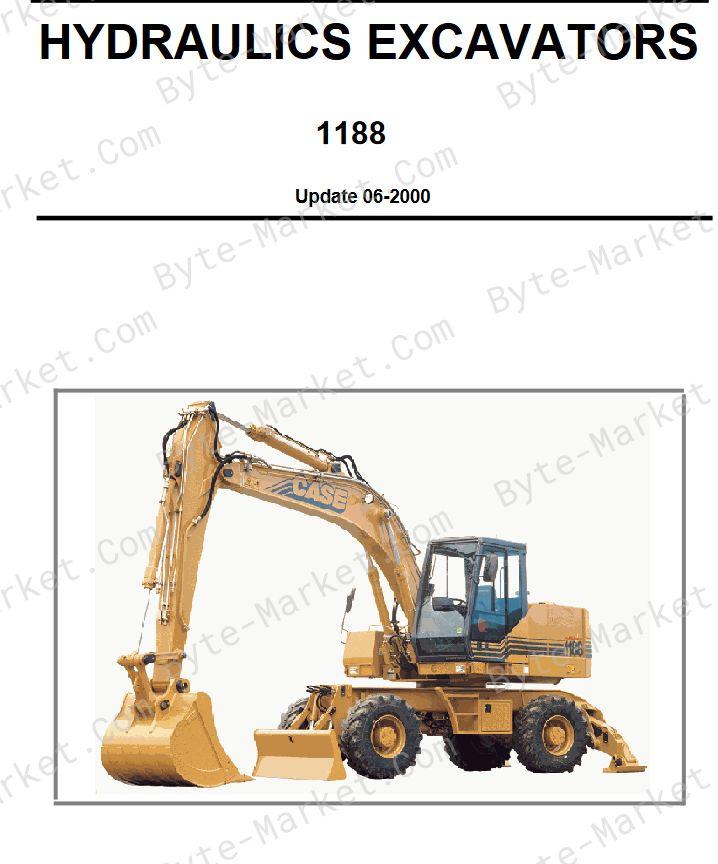

Case 1188 Hydraulics Excavators Schematic Set PDF

Case
(0)

Number of pages: 318 File size: 14Mb Screenshot

On this website, you'll find a comprehensive schematic manual for the Case Hydraulic Crawler and Wheeled Excavators 788, 988, and 1188. This manual contains a wealth of visual aids, including pictures, illustrations, diagrams, and schematics, to help you better understand the machinery. It also includes crucial information such as safety guidelines, general information, specifications, electronic details, and troubleshooting information.

This schematic manual is designed to function seamlessly on a personal computer or laptop, and it comes in PDF format, spanning 318 pages. You'll need to install Adobe PDF Reader to use it effectively. With this manual, you can be confident that you'll have all the information you need to operate and maintain your machinery safely and efficiently.

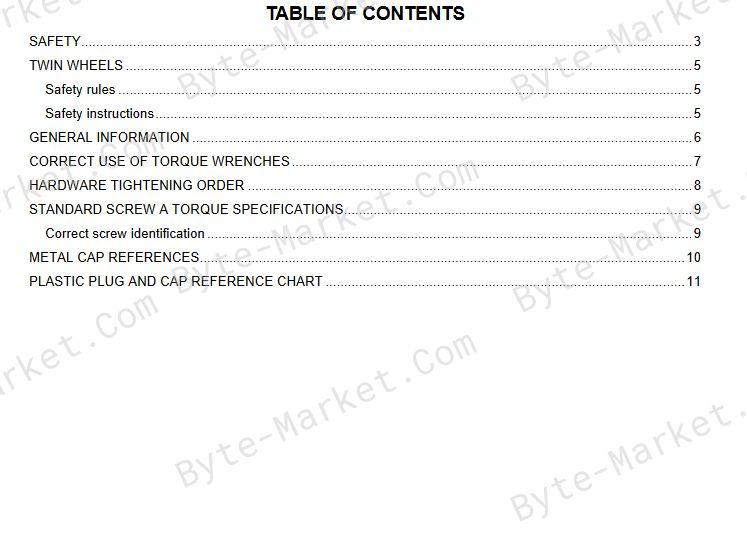

TABLE of CONTENTS:

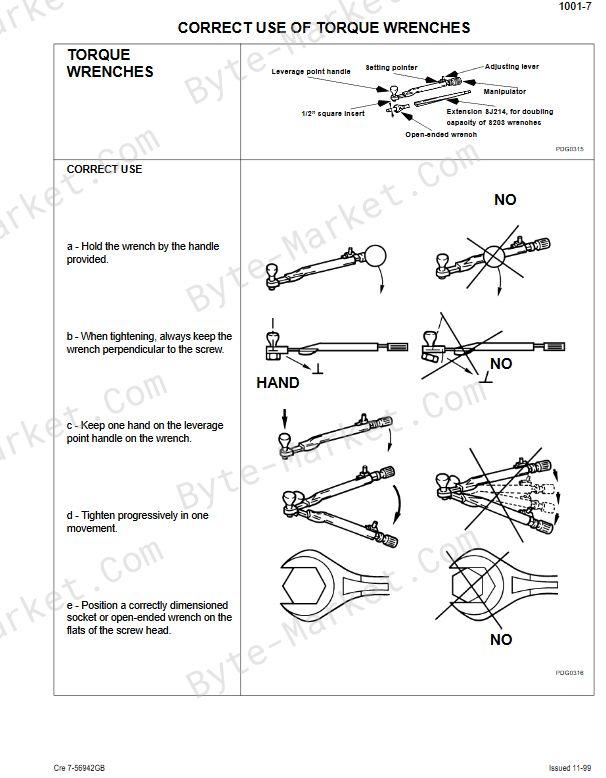

Safety, General Information, and Torque Specifications
Specifications 1188 Plus Crawler Excavators
Specifications 1188 Plus Wheeled ExcavatorsMachine Overall Dimensions
Electrical Schematics 1188 Crawler Excavators (old version)
Electrical Schematics 1188 Crawler Excavators (new version)
Electrical Schematics 1188 Wheeled Excavators (old version)
Electrical Schematics 1188 Wheeled Excavators (new version)
Electronic And Troubleshooting System 1188 Crawler Excavators
Electronic And Troubleshooting System 1188 Wheeled Excavators
Hydraulic Checks, Adjustments, And Schematics 1188 Crawler Excavators
Hydraulic Checks, Adjustments, And Schematics 1188 Wheeled Excavators
