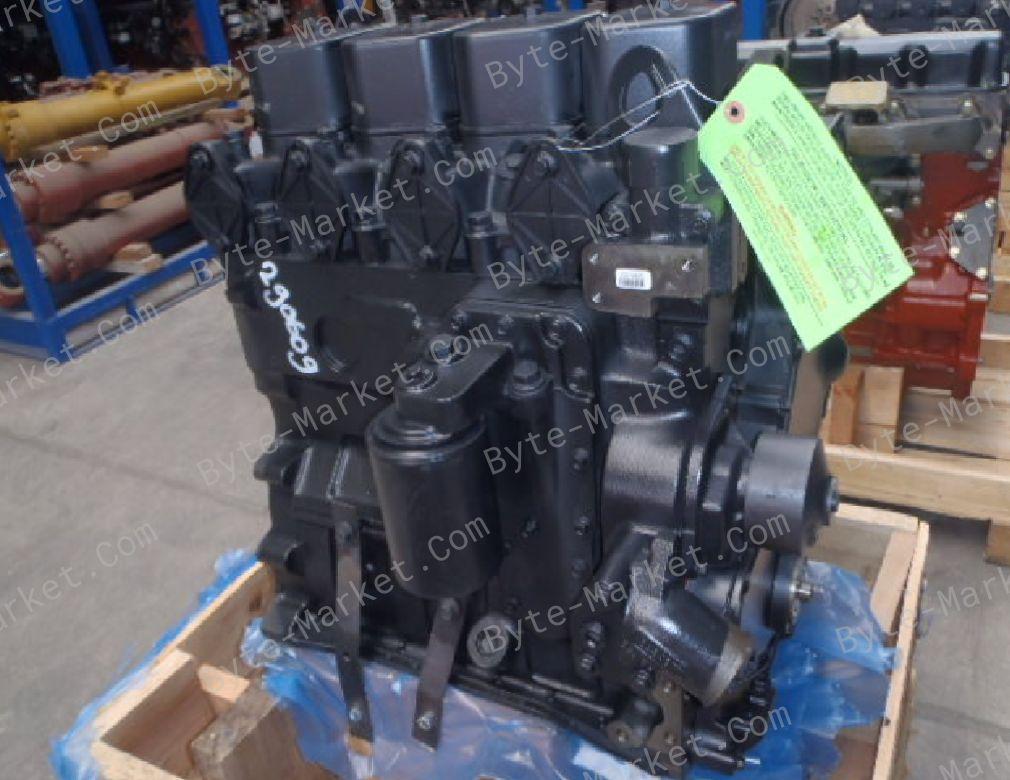

Case 4-390/ 4T390 / 4TA-390 Engine Service Manual in PDF

Number of pages: 342 File size: 140Mb Screenshot
  • Share:
We are pleased to offer our comprehensive Service Manual for the Case 4-390, 4T390, and 4TA-390 engines. This electronic manual contains all the vital information needed for diagnosis, analysis, testing, and repair of the engine, including setting information, technical maintenance, troubleshooting procedures, and much more.

With detailed pictures, screenshots, diagrams, and tables showing the location of necessary components, you'll be able to easily install or remove any parts from your engine. The manual is designed for experienced technicians, but even if you're new to this type of equipment, it will be understandable and accessible to you.

This service manual will help you quickly and easily identify any faults and eliminate them, as well as aid in planned and unscheduled maintenance. Upon payment, you'll be redirected to the manual download page. The manual is available in PDF format, and we recommend using Adobe PDF Reader to work with it.

TABLE of CONTENTS:
Standard Torque Specifications
Specification Details
Cylinder Head and Valve Train
Lubrication System
Cooling System
HX25W and HX30W Turbocharger
Fuel Injectors
Bosch Model VE Fuel Injection Pump
