Case 788P & C Powersensor Hydraulics Excavators Manual in PDF

This manual provides general information, technical specifications, installation instructions, location of components, assistance instructions, illustrations, pictures, and diagrams for Case Hydraulics Excavators 788P and 788C. It is available in PDF format, with 60 pages that are printable and readable. To view the information, you need to install Adobe PDF Reader. This manual is a great resource for anyone looking to gain a better understanding of hydraulics and the components of Case Hydraulics Excavators 788P and 788C.

TABLE of CONTENTS:

788 HYDRAULICS GENERAL
788C TECHNICAL SPECIFICATIONS

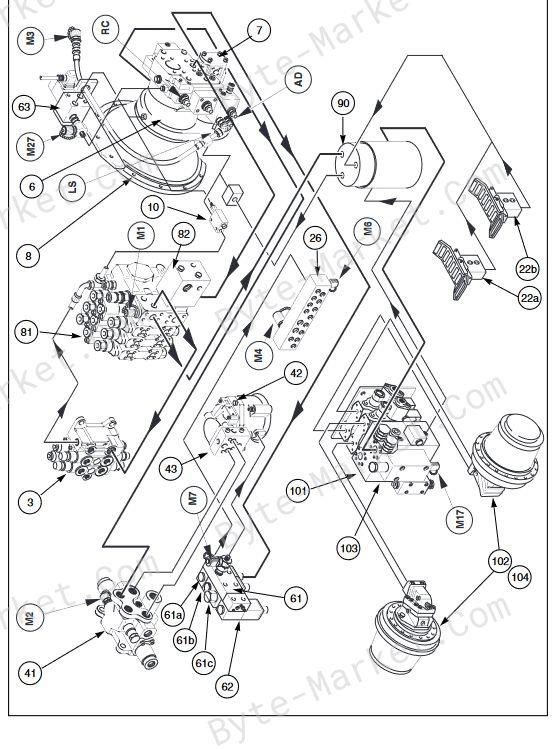

LOCATION OF HYDRAULIC COMPONENTS ON 788 C
788 C SINGLE-SPEED GENERAL HYDRAULIC SYSTEM
TWO-SPEED 988 C GENERAL HYDRAULIC SYSTEM
TECHNICAL SPECIFICATIONS OF THE 788 P

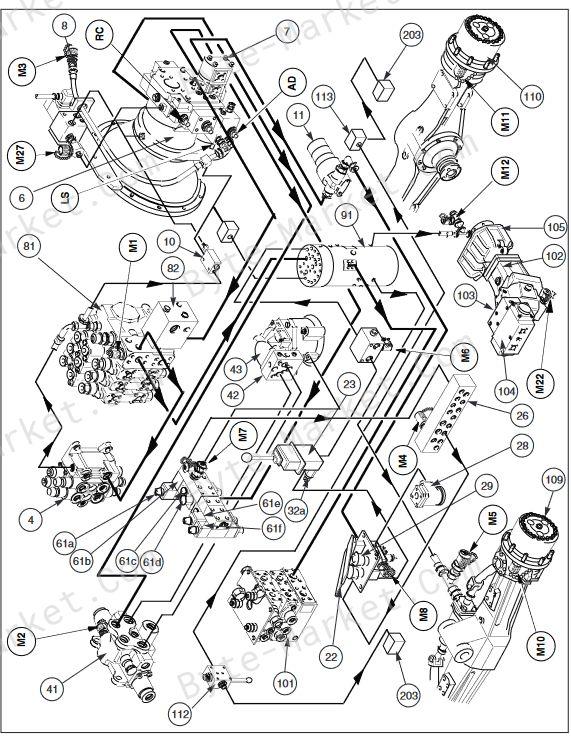

LOCATION OF HYDRAULIC COMPONENTS ON THE 788 P
788 P GENERAL HYDRAULIC SYSTEM
HYDRAULIC PUMPS 788
THE HYDRAULIC POWER UNIT
WORKING PRINCIPLES
ASSISTANCE AND STEERING / BRAKE PUMPS
THE PROPORTIONAL VALVE
ANTI-SURGE VALVE
788 PRESSURE SETTINGS
PRESSURE SETTING 788C
PRESSURE SETTING 788P
