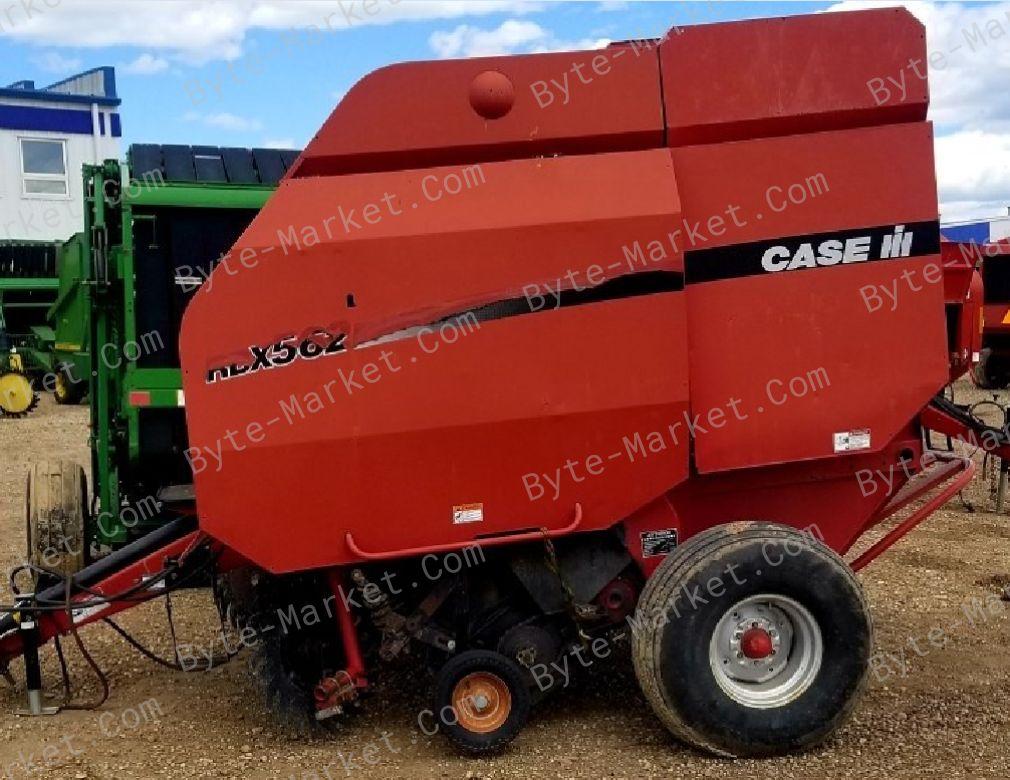

Looking for assistance with the maintenance and troubleshooting of your Case Round Baler RBX562? Look no further than our comprehensive repair manual! This manual is divided into sections, with each chapter containing information on general operating principles, detailed inspection, overhaul, and, where applicable, specific troubleshooting, special tools, and specifications.
In addition to this, our manual includes detailed information on the removal, repair, and installation of components, along with important troubleshooting and technical information necessary to properly service the device. This illustrated manual provides you with a detailed reference to help you understand the text and the parts of your device.

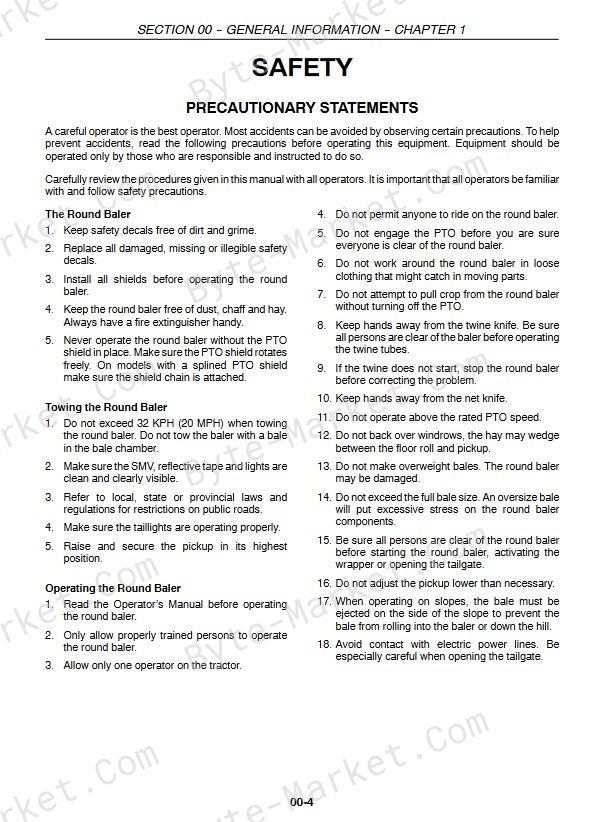

We take safety seriously, and that is why our manual includes precautionary statements (DANGER, WARNING, and CAUTION) followed by specific instructions. These precautions are intended for your personal safety, as well as those working with you. We ask that you take the time to read them, and by following these instructions, you can ensure the safe, efficient, and timely completion of your service or repair.
This indexed PDF file allows you to easily find the desired section with just one click. The manual includes hundreds of pages in English. It is compatible with computers including WIN, MAC, and more. We recommend using Adobe PDF Reader to ensure all images and graphics display correctly, and you can easily view, navigate, print, and zoom in/out as per your requirements.

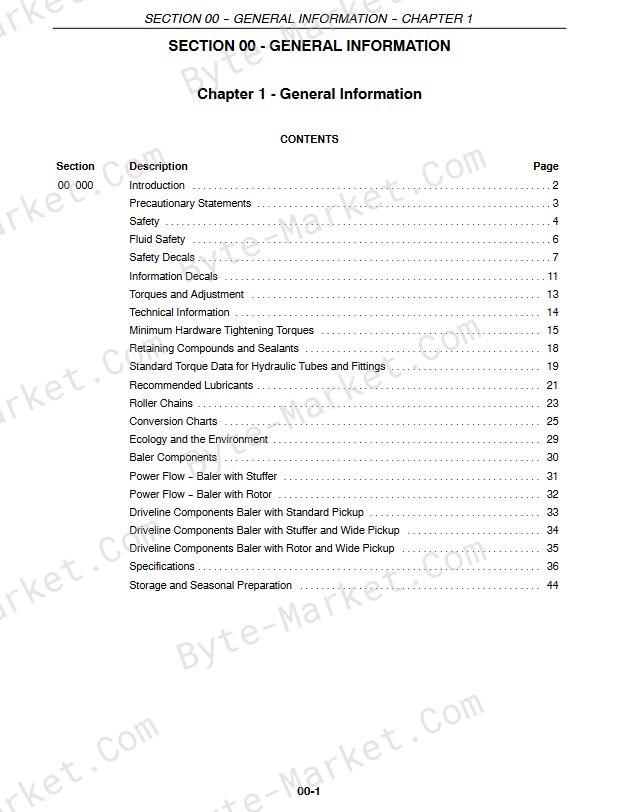

TABLE of CONTENTS:
GENERAL INFORMATION
IMPLEMENT DRIVELINE
HYDRAULICS
FRAME
AXLES AND WHEELS
ELECTRICAL SYSTEMS
PRODUCT FEEDING
PRESSING
WRAPPING
EJECTION
SHIELDING
