Clark TMX 12-25/EPX 16-20s Lift Trucks Service Manual in PDF

Elevate the maintenance and service of your Clark Lift Trucks TMX 12-25, and EPX 16-20s with our comprehensive service manual. This manual is designed to serve and maintain all TMX12-25, and ECX16-18 models, featuring a "base" module applicable to all, along with specific modules tailored to individual models. With detailed instructions, this service manual aids in identifying symptoms, pinpointing issues, and guiding you through the repair process. Invest in this manual to ensure efficient problem-solving and the longevity of your Clark Lift Trucks.

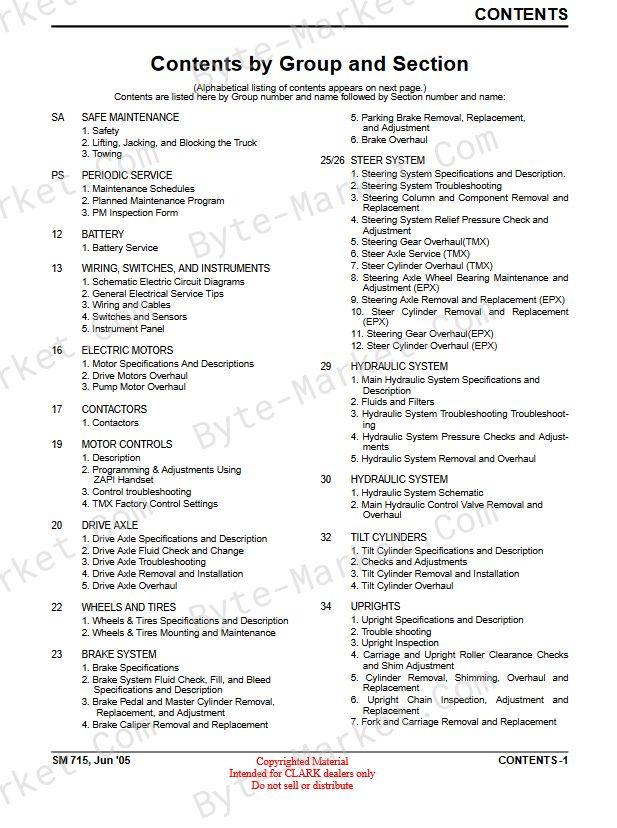

TABLE of CONTENTS:

Safe Maintenance

Periodic Service

Battery

Wiring, Switches, and Instruments

Electric Motors

Motor Controls

Drive Axle

Wheels And Tires

Brake System

Steer System

Hydraulic System

Tilt Cylinders

Uprights

Counterweight and Chassis

Specifications
