Cummins Tier 2/Tier 3/ Tier 4 Engines Set of Electric Circuits

proud to offer a comprehensive set of wiring diagrams, and electrical diagrams for Cummins engines Tier 2, Tier 3, and Tier 4 series. These schematics are intended as diagnostic tools for experienced and trained technicians, but they are also suitable for newcomers who are looking to learn.

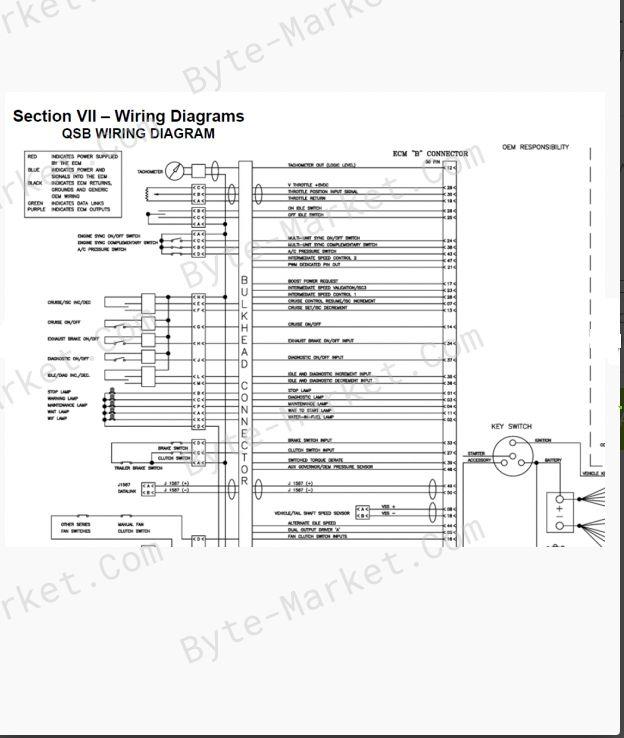

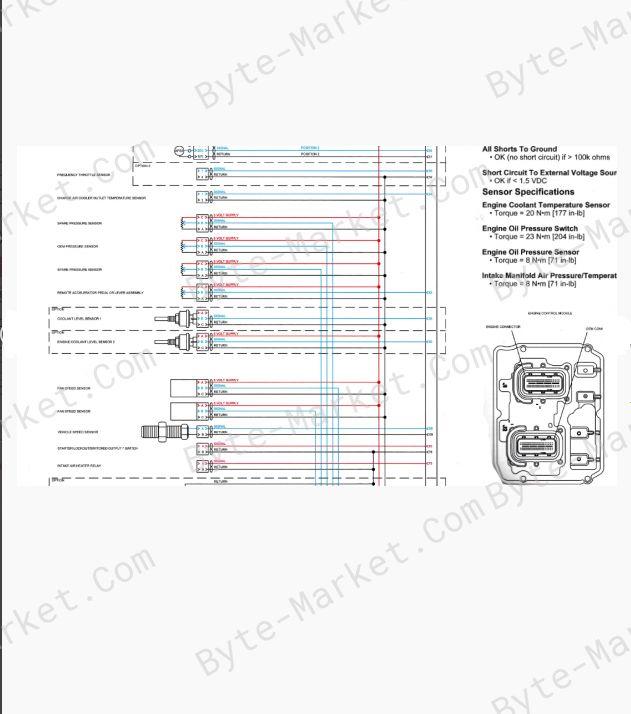

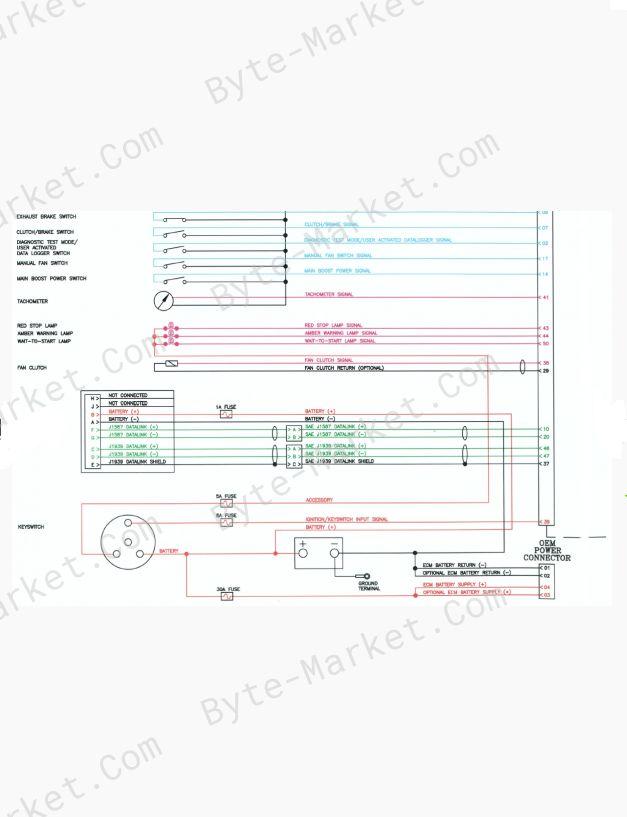

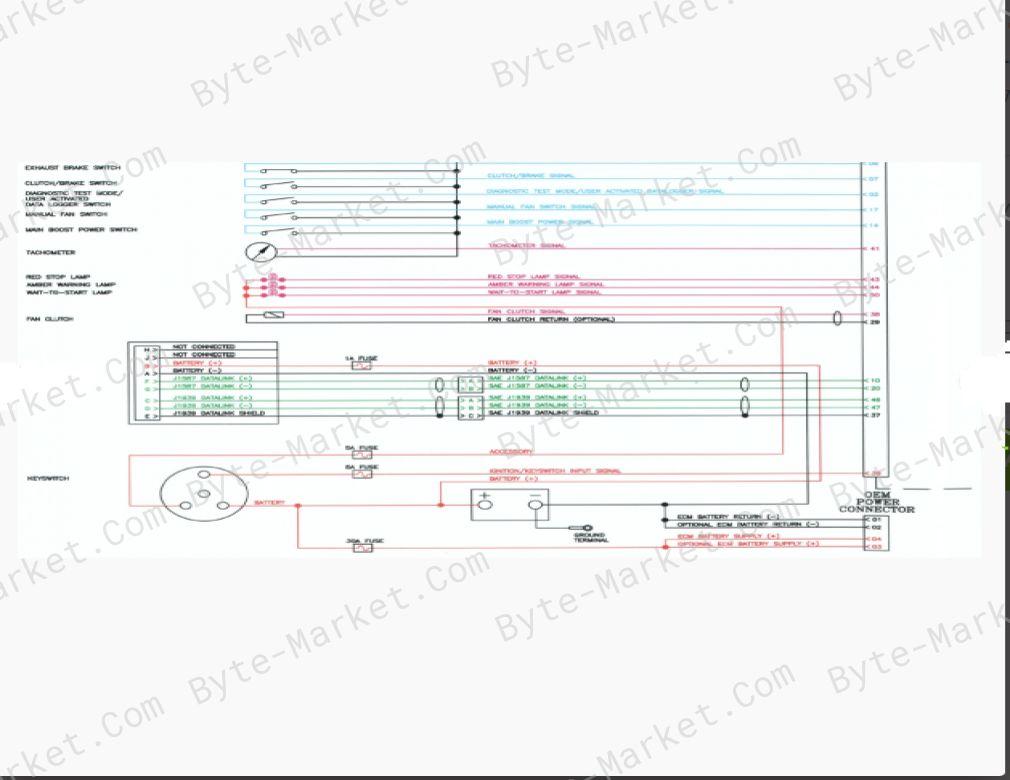

This manual includes detailed wiring diagrams, electrical diagrams of the electronic control module, and other relevant information to help you troubleshoot and diagnose issues with Cummins engines. With this manual, you'll be able to understand the electrical systems of these engines and perform the necessary repairs.
