DAF ZF 9S109/ZF 16S109 Components Manuals in PDF

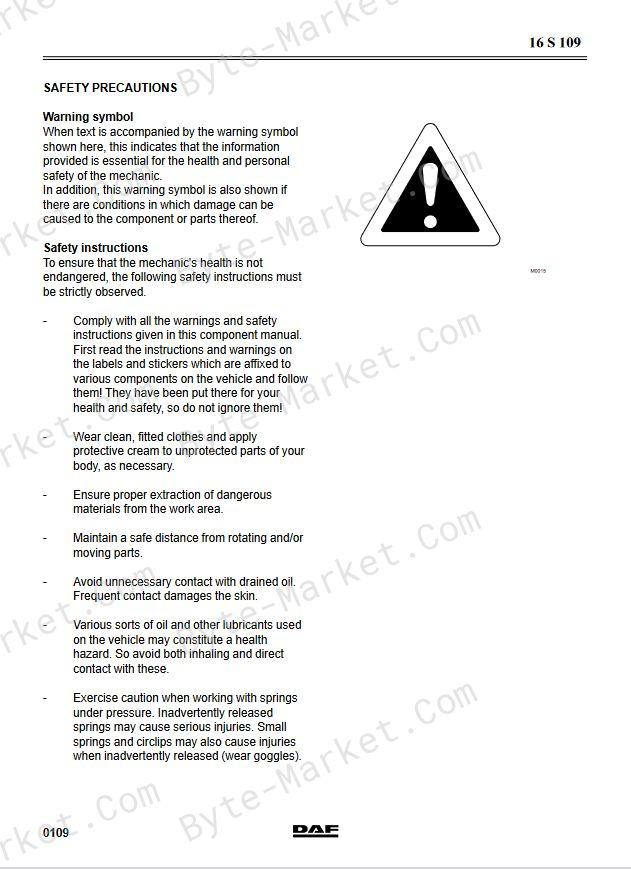

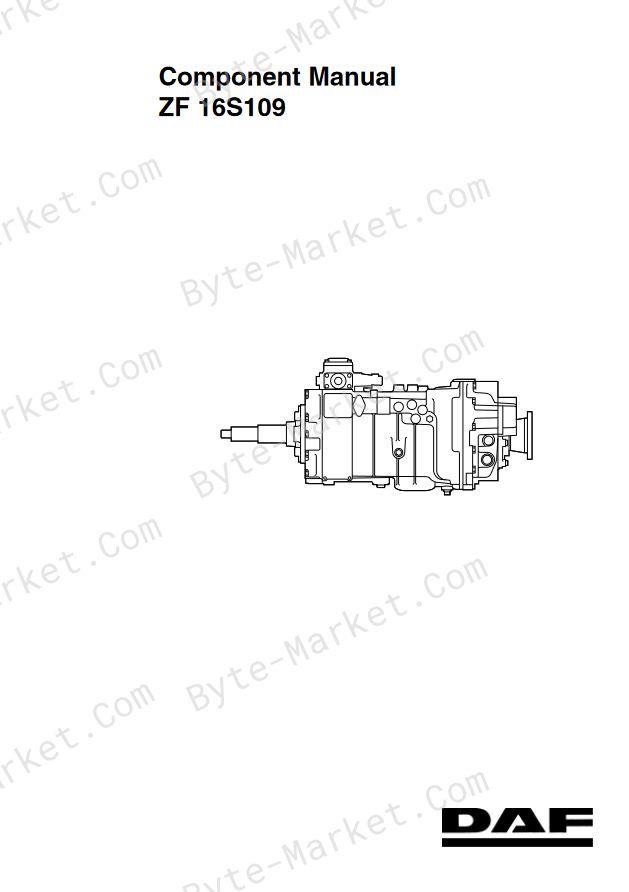

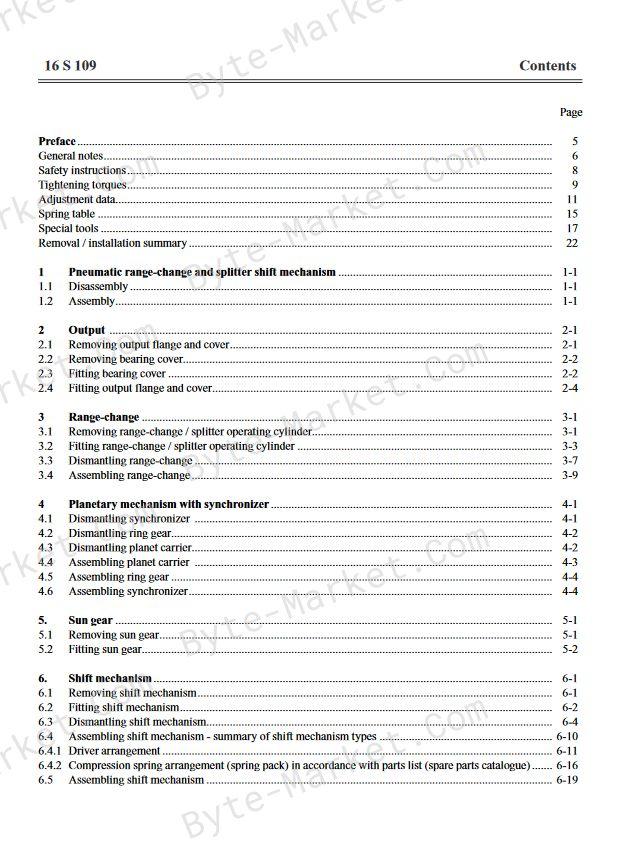

The DAF ZF 9S109/ZF 16S109 Components Manuals provide professional guidance for servicing and maintaining these transmissions. The manuals come in two separate PDF files, each containing detailed service information, repair procedures, installation instructions, and special instructions specific to the ZF 9S109 and ZF 16S109 transmission models. The manuals include photographs and diagrams to help locate and describe components, making it easier for users to identify and work with various parts of the transmission. Additionally, the manuals cover tightening torques, adjustment data, spring tables, and special tools required for servicing these transmissions. The removal/installation summary, pneumatic range-change and splitter shift mechanism, output range-change planetary mechanism with synchronizer, sun gear shift mechanism, and adjusting bearings on the main shaft, input shaft, and layshaft are all covered in detail. These manuals are essential for anyone looking to perform quality service and maintenance on DAF transmissions.
