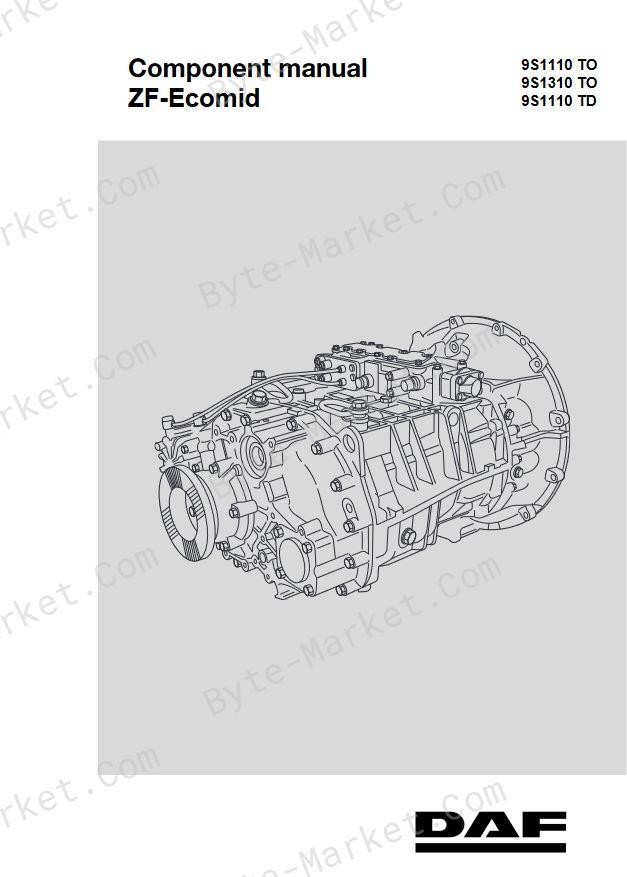

DAF ZF-Ecomid 9S series Components Manual in PDF

This component manual contains the necessary technical information for the DAF ZF-Ecomid 9S series. The manual includes service information, a description of repair and troubleshooting procedures, installation instructions, special instructions, maintenance, and any additional information that is used in the quality service of the DAF ZF-Ecomid 9S. The manual uses photographs and drawings to help locate and describe components. Before you start operating your Daf truck, study the manual for its components, this will help avoid breakdowns and prolong the life of the equipment.

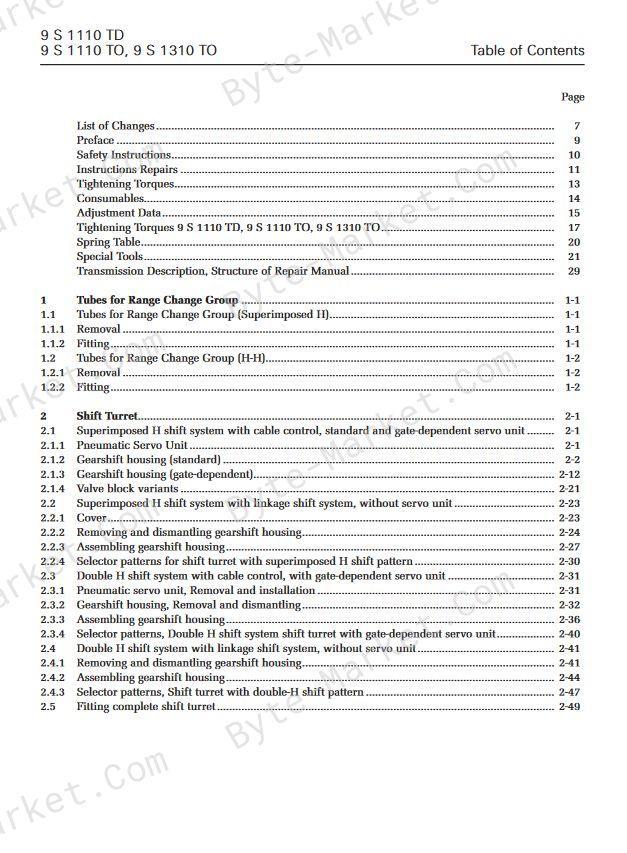

TABLE of CONTENTS:

List of Changes

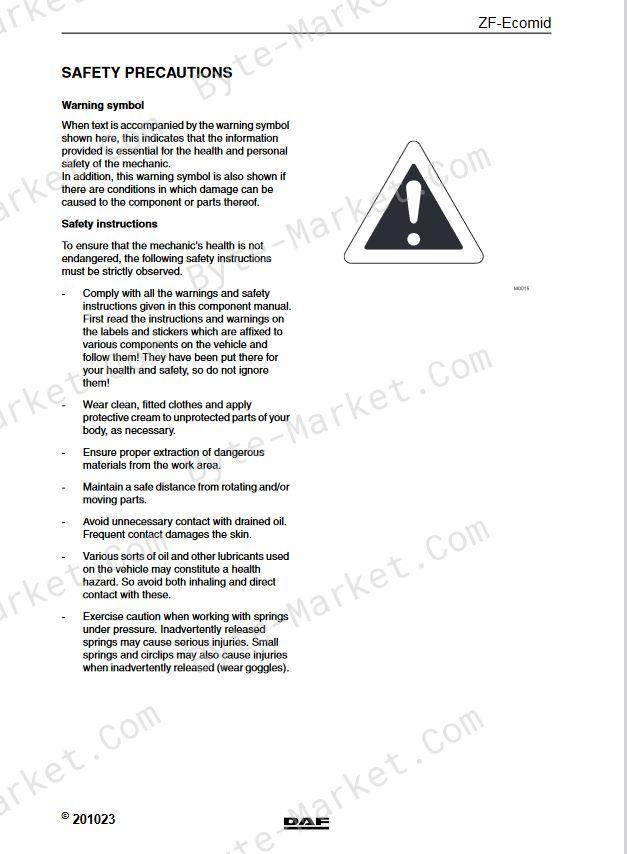

Safety Instructions
Instructions for Repairs
Tightening Torques
Consumables
Adjustment Data
Special Tools
Transmission Description, Structure of Repair Manual
Shift Turret
Range Change Group
Output Flange
Planetary Drive with Synchronizer Unit
Sun Gear
Connection Plate
Clutch Bell Housing
Reverse Grear Pin, Gear Shift Rails, and Gear Shift Forks
Input Shaft, Main Shaft, and Countershaft
Countershaft
Bearing, Setting on Main Shaft, Input Shaft, and Countershaft
Housing
Synchronizer
