Kobelco LK500 Wheel Loader Service Manual in PDF

This is the instruction manual for LK Series Wheel Loaders. Our manual provides all the technical information needed to service and repair our wheel loaders. It describes specifications, operation, and troubleshooting, and explains the roles and relationships of components in each system. It also contains service procedures and information necessary to remove/install each component. The functions, operation, assembly/disassembly and repair procedures, installation procedures, and modifications of non-standard parts are described in detail.

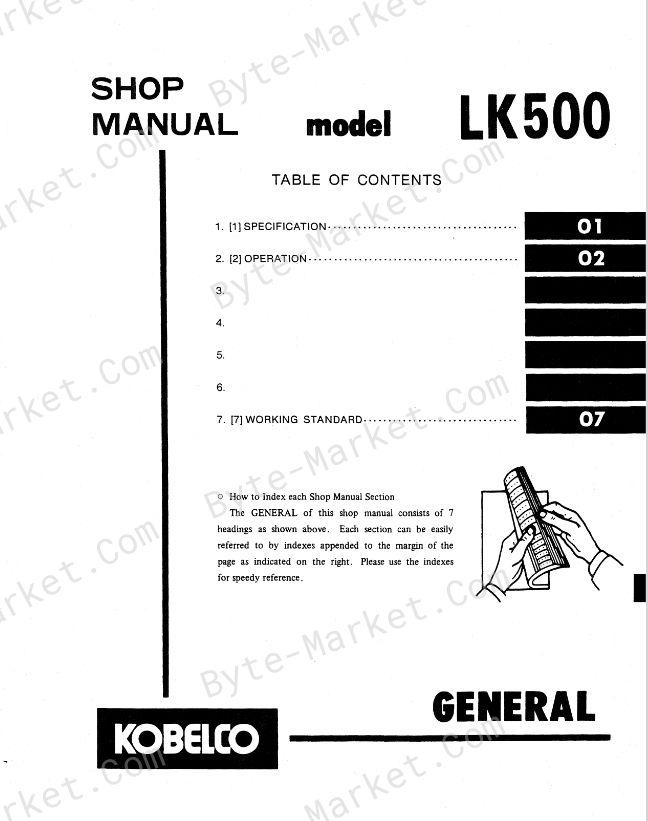

TABLE of CONTENTS:

SPECIFICATION
OPERATION
WORKING STANDARD[7]
DRIVE SYSTEM
HYDRAULIC SYSTEM
BOOM LINKAGE-PIVOT PIN
STEERING SYSTEM
BRAKE SYSTEM
HYDRAULIC PUMP· TRANSMISSION
CONTROL VALVE · ORBITAL
PRIORITY VALVE· AXLE
TIRE
HYDRAULIC CYLINDER
CYLINDER TOOL LISTS
DISC BRAKE
BUCKET REPAIR SERVICE
