Kubota TL500 Parts Catalog
This 31-page Kubota Parts Catalog covers the TL500 loader. It presents illustrated parts-book sections for the main frame, front guard, boom, parallel link, quick hitch, control valve plug and control lever, cylinder/hydraulic hose, hydraulic tube, and boom and bucket cylinders. The source also includes catalog headings for bucket options, a bale spear, pallet fork and 3rd function kits. The matching parts tables use reference numbers, part numbers, part names, quantities, serial-number applicability, interchangeability and remarks fields.
Manual Details and Coverage
- Manual Code
- Not stated in source
- Machine
- Kubota Loader
- Models Covered
- TL500
- Pages
- 31
- Manufacturer
- Kubota
- Publication
- Not stated in source
- Language
- English
- Format
- Digital PDF (Downloadable)
Manual Contents
The parts catalog is organized around the following source-listed assemblies and component groups:

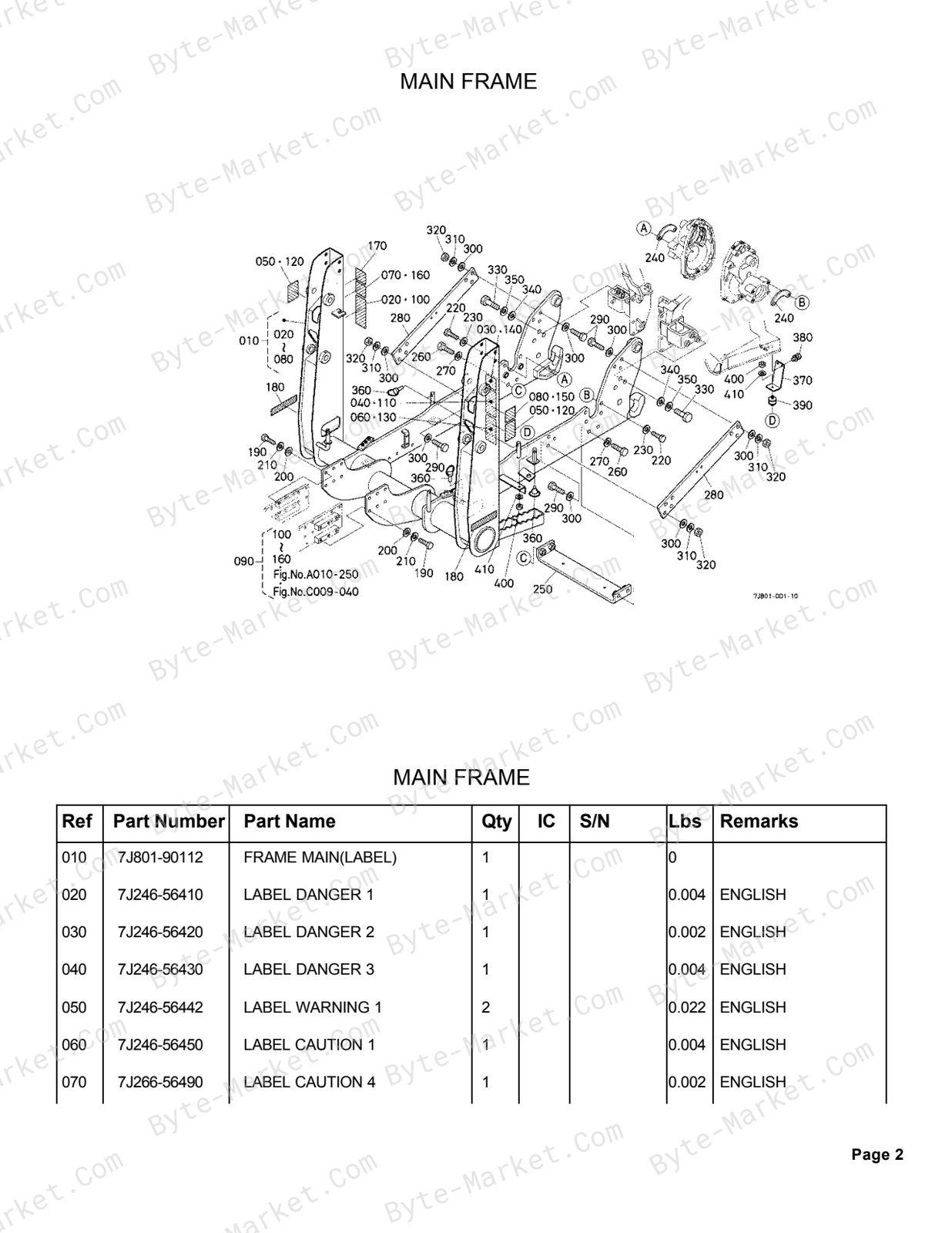

- MAIN FRAME
- BOOM

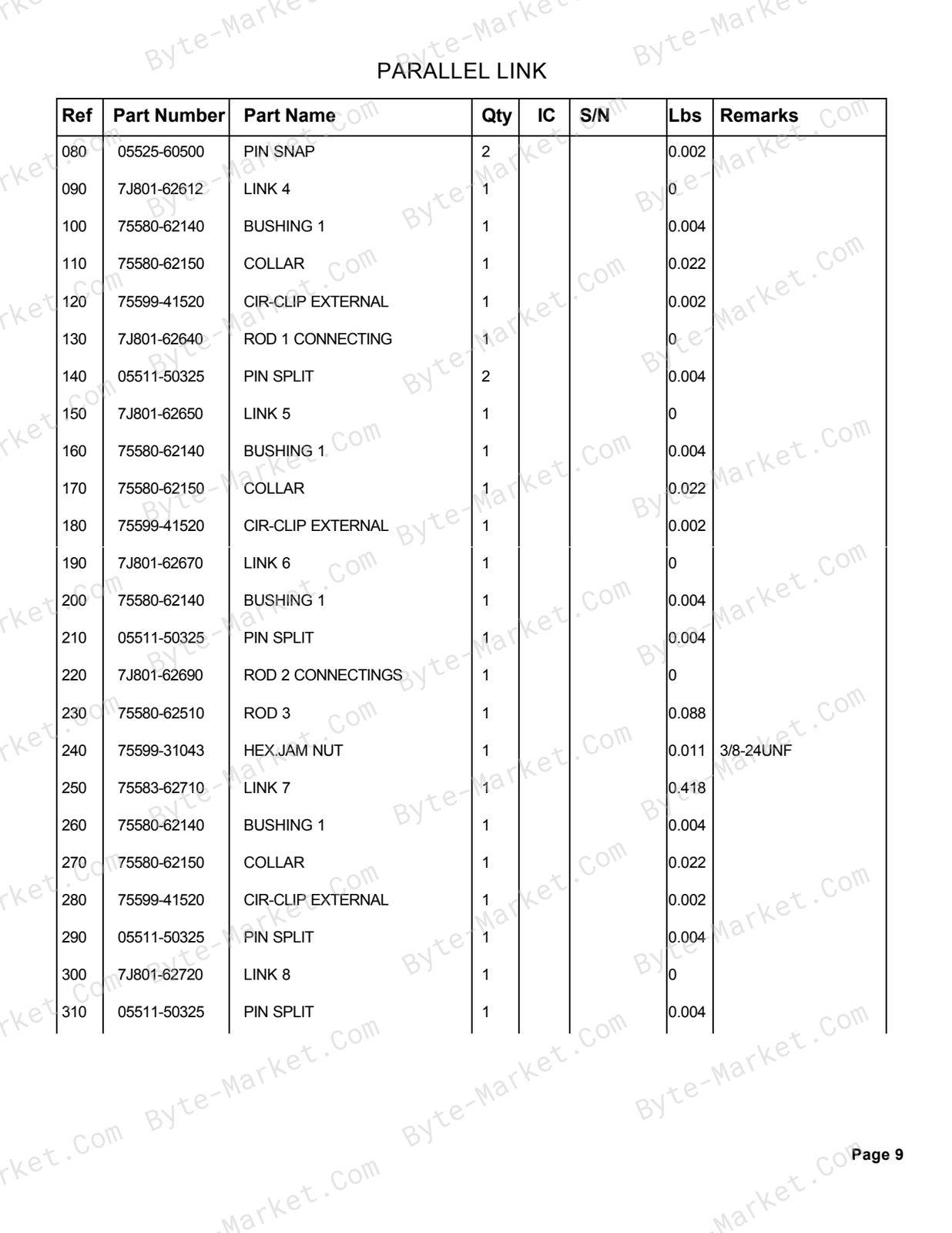

- PARALLEL LINK
- BUCKET [60INCH] ## [TL2142] BLADE,BOLT ON(TL2143)[OPTION]
- QUICK HITCH
- CONTROL VALVE PLUG

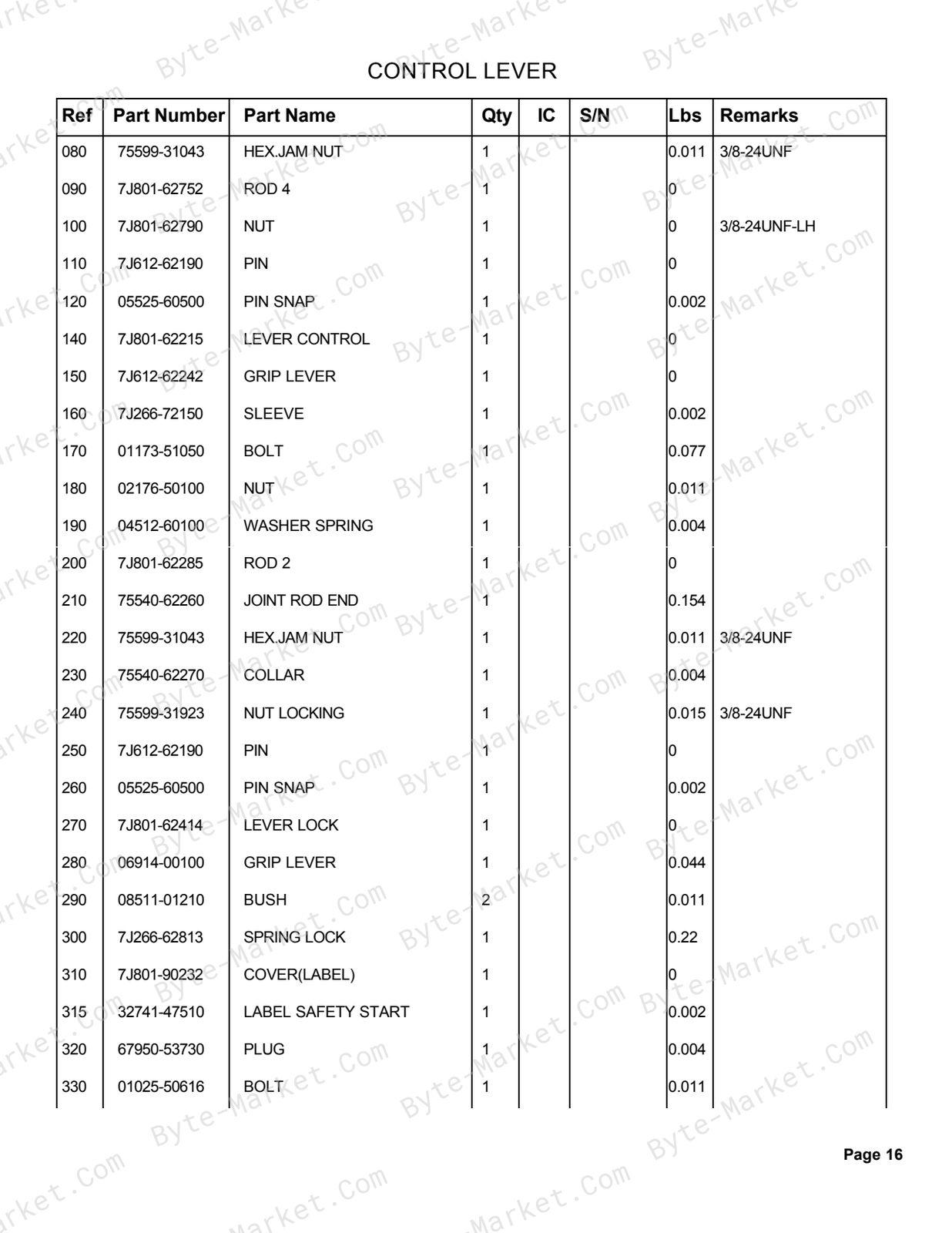

- CONTROL LEVER
- CYLINDER/HYDRAULIC HOSE
- HYDRAULIC TUBE
- CYLINDER (BOOM)[COMPONENT PARTS]
- CYLINDER(BUCKET)[COMPONENT PARTS]
- BALE SPEAR ## [L2237]
- PALLET FORK ## [L2238]
- 3RD FUNCTION KIT [1] ## [TL2141]
Illustrated Parts Coverage

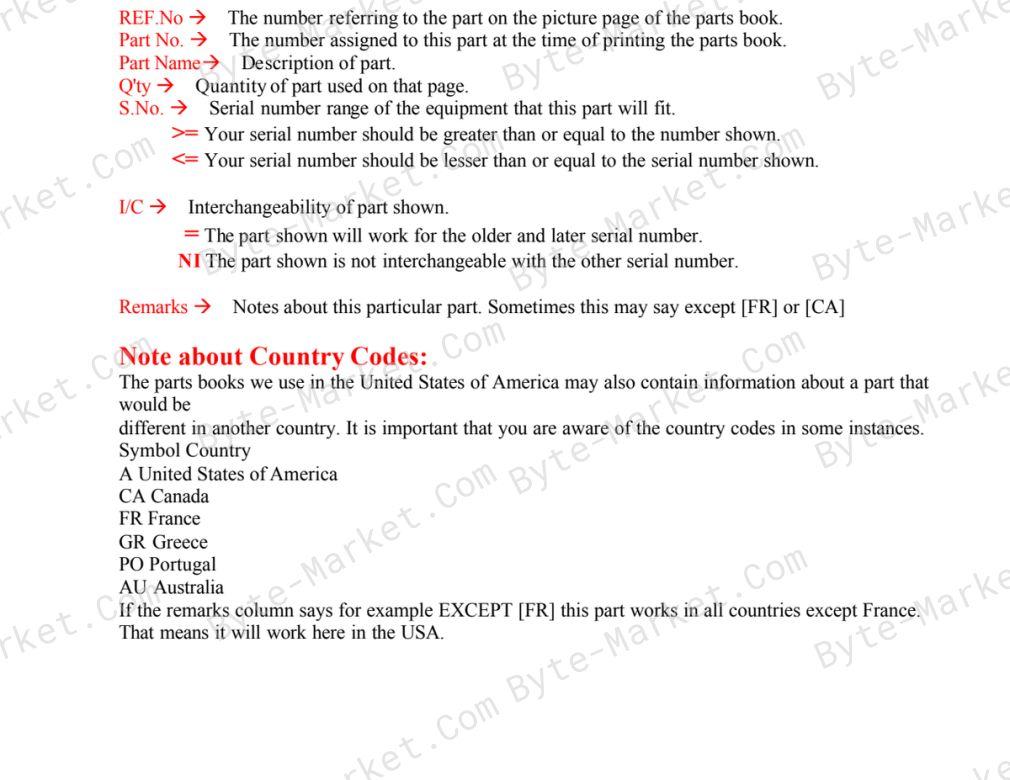

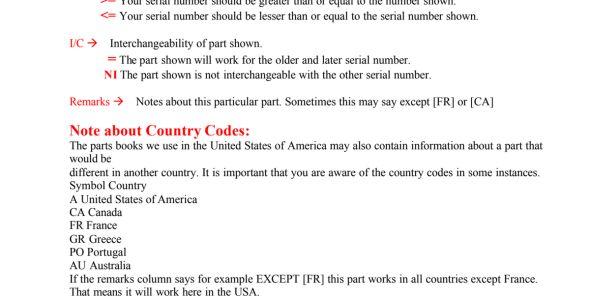

- The parts-book instructions state that the heading on each picture page matches the heading on its corresponding part-number page.
- Exploded picture pages use numbered callouts that correspond to REF.No entries on the part-number pages.
- The source explains REF.No, Part No., Part Name, Q'ty, serial-number, I/C and Remarks columns used in the parts tables.
- The source includes headings for a Bale Spear, Pallet Fork and 3rd Function Kit; these are described here only as catalog sections, not as standard equipment.
Delivery (Instant Download)
This manual is supplied as a digital PDF file and is available for instant download after purchase. No physical media is shipped.
