Kubota TL720 (L35) Parts Catalog

This 31-page Kubota Parts Catalog covers the TL720 (L35) loader. It presents parts-book sections for the frame, boom, bucket, control valve, control lever, link, cylinder/hydraulic hose, hydraulic tube, and boom and bucket cylinder component parts. The matching parts tables use reference numbers, part numbers, descriptions, quantities, serial-number applicability, interchangeability and remarks fields.

Manual Details and Coverage

Manual Code

Not stated in source

Machine

Kubota Loader

Models Covered

TL720, L35

Pages

31

Manufacturer

Kubota

Publication

Not stated in source

Language

English

Format

Digital PDF (Downloadable)

Manual Contents

The parts catalog is organized around the following source-listed assemblies and component groups:

1. FRAME
2. BOOM
3. BUCKET
4. CONTROL VALVE
5. CONTROL VALVE [COMPONENT PARTS]
6. CONTROL LEVER
7. LEVER COVER
8. LINK
9. CYLINDER/HYDRAULIC HOSE
10. BOOM CYLINDER [COMPONENT PARTS]
11. BUCKET CYLINDER [COMPONENT PARTS]
12. HYDRAULIC TUBE
13. ACCESSORIES AND SERVICE PARTS

Illustrated Parts Coverage

• The parts-book instructions state that the heading on each picture page matches the heading on its corresponding part-number page.
• Exploded picture pages use numbered callouts that correspond to REF.No entries on the part-number pages.
• The source explains REF.No, Part No., Description, Q'ty, serial-number, I/C and Remarks columns used in the parts tables.

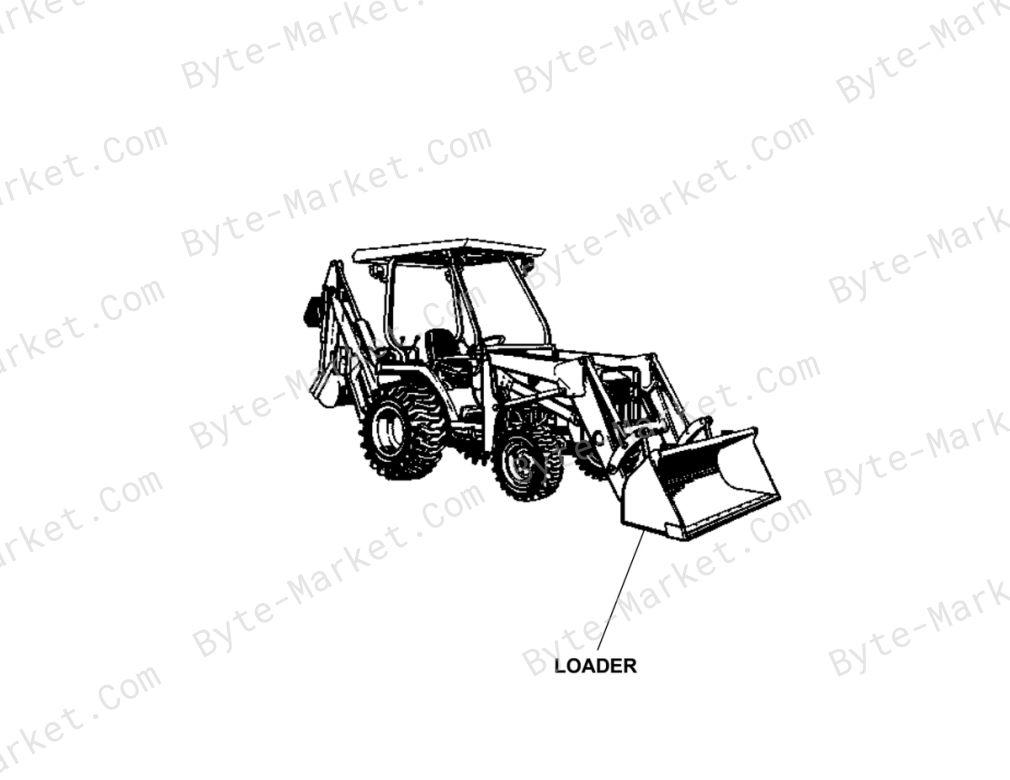

• The source labels the loader index TL720(L35), with LOADER and ACCESSORIES sections.

Delivery (Instant Download)

This manual is supplied as a digital PDF file and is available for instant download after purchase. No physical media is shipped.

References

Kubota Loader TL720 (L35) Parts Manual, 31-page PDF edition.
