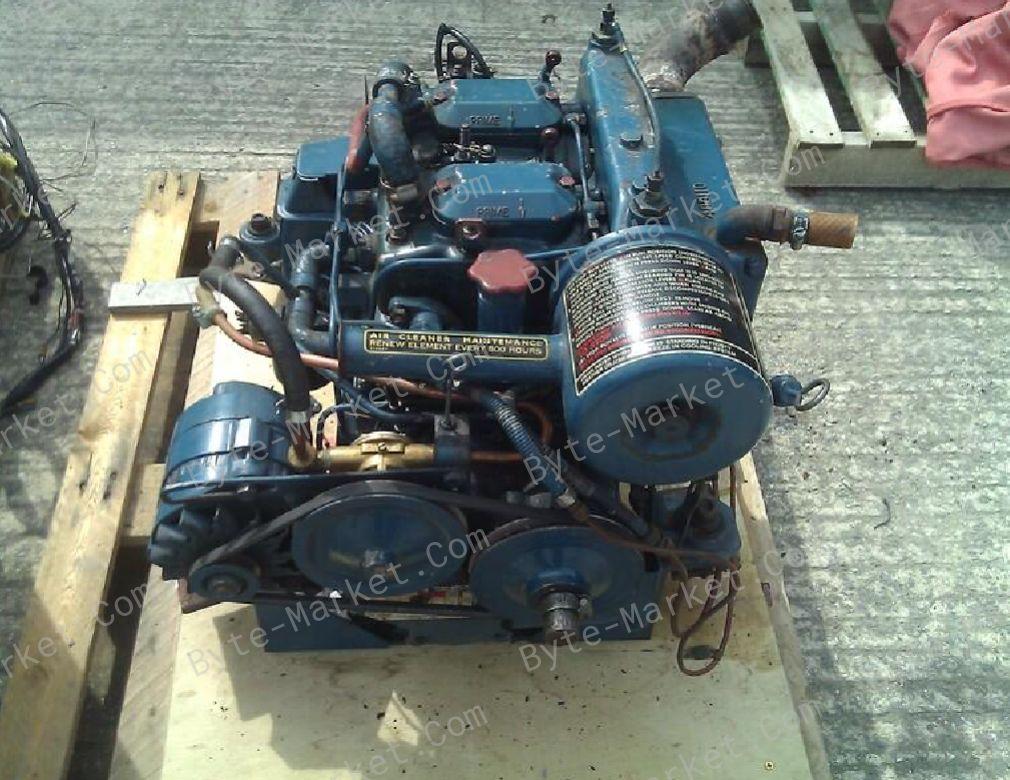

Mitsubishi Diesel Engines S3L/S3L2/S4L/S4L2 Service Manual in PDF

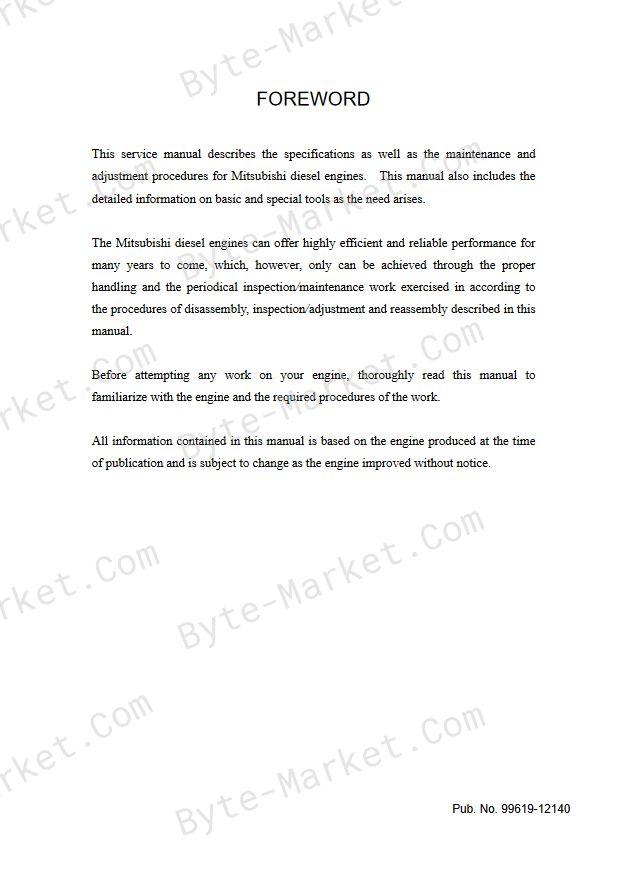

This Service Manual describes the various procedures recommended by Mitsubishi Heavy Industries, Ltd. for servicing Mitsubishi diesel engines. These procedures include the special tools required and appropriate precautions. Also in this manual, you will find diagrams, photographs, disassembly recommendations, and more. Use this service manual for every service and repair opportunity.

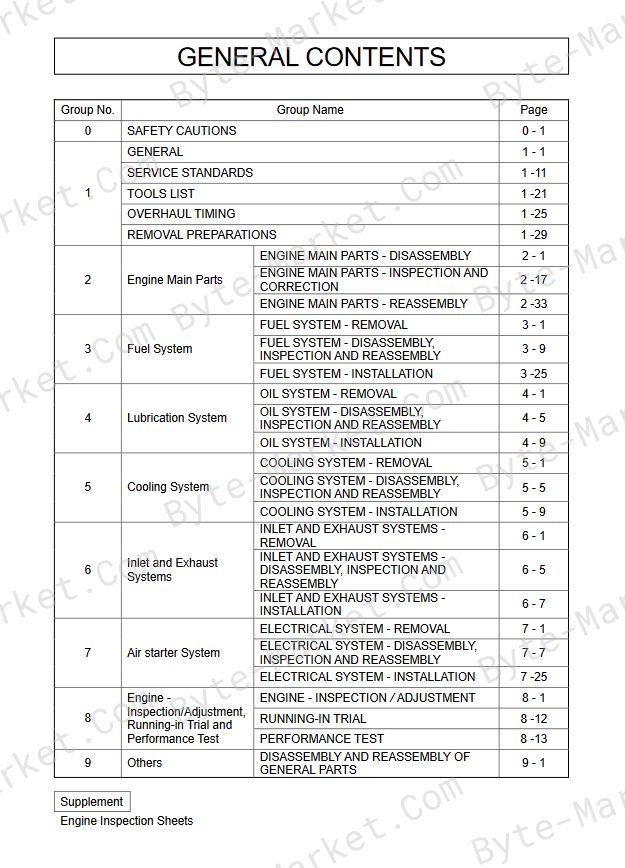

TABLE of CONTENTS:
SAFETY CAUTIONS
GENERAL
SERVICE STANDARDS
TOOLS LIST
OVERHAUL TIMING
REMOVAL PREPARATIONS
ENGINE MAIN PARTS
FUEL SYSTEM
LUBRICATION SYSTEM
COOLING SYSTEM
INLET AND EXHAUST SYSTEMS
AIR STARTER SYSTEM
ENGINE - INSPECTION / ADJUSTMENT, RUNNING-iN TRIAL AND PERFORMANCE TEST
OTHERS
