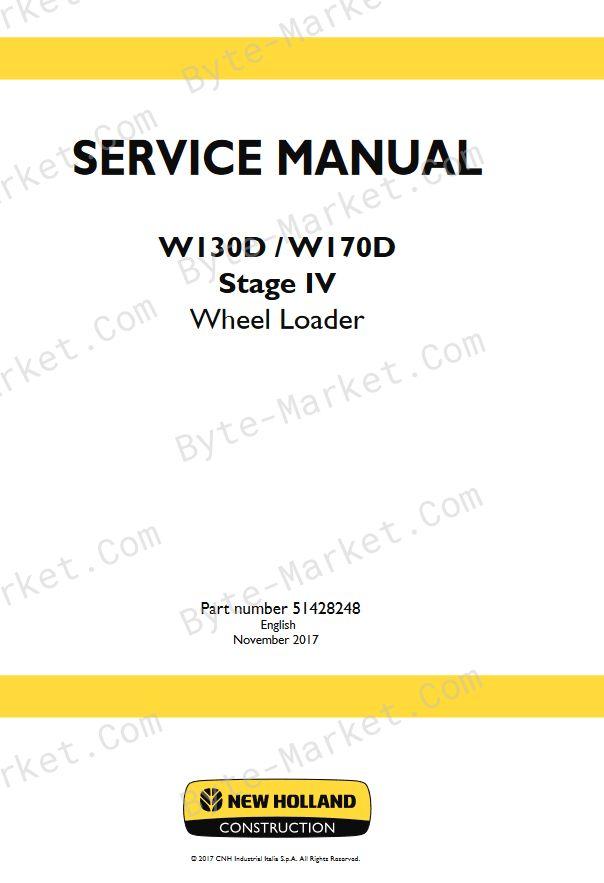

New Holland W130D/W170D Stage IV Wheel Loader Service Manuals in PDF

Number of pages: 10777 File size: 523Mb Screenshot
  • Share:
Service Manual of the brand New Holland includes all necessary technical information for your equipment. This information is about the latest New Holland D series wheel loaders which have proven strength, performance reliability and secede a best-in-class cab for improved visibility and unrivaled levels of comfort. They offer exceptional levels of comfort to make them the operator’s first choice.

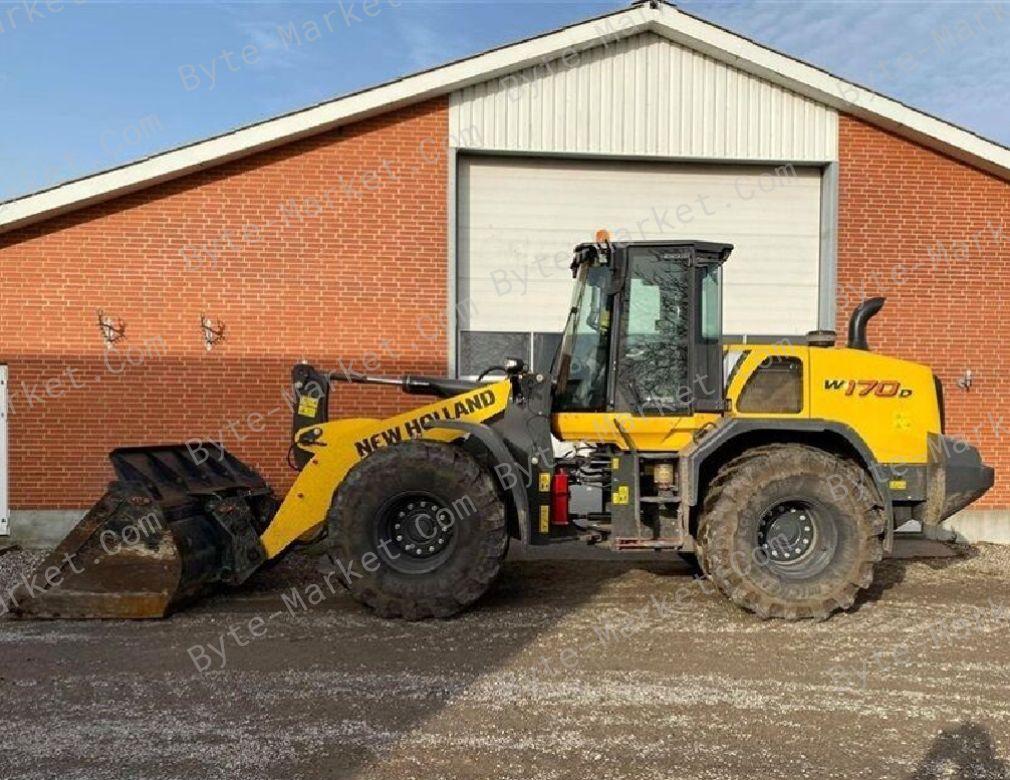

Also, New Holland W130D, W170D Wheel Loader is designed to meet the needs of large-scale farmers, agricultural contractors, composting operators, and biogas farmers where absolute loading performance is critical. In this electronic book, you can read such information as service and repair information, technical maintenance, setting, troubleshooting, different illustrations, diagrams, etc. Before disassembly or removal of parts, analyze the procedure to be careful and keep the device working properly.
Our PDF service manual is divided into two files which will show you all the parts on your wheel loader.  We recommend using Adobe PDF Reader, to be sure all images/graphics will display correctly.

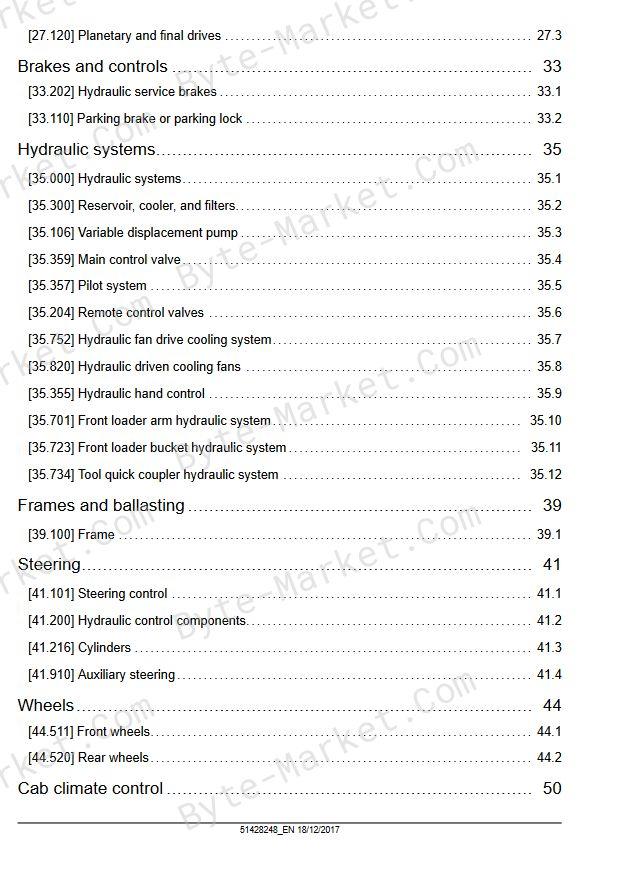

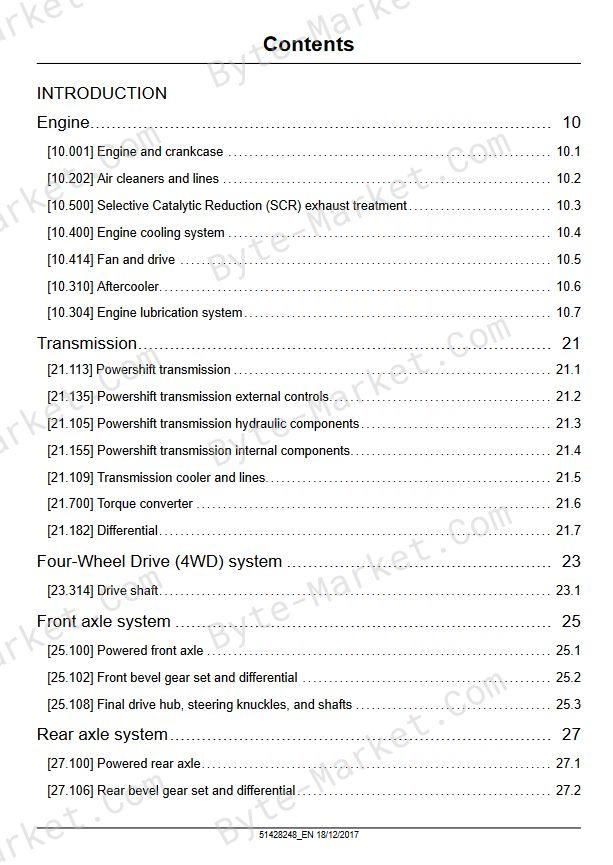

TABLE of CONTENTS:
Engine
Transmission
Four-Wheel Drive (4WD) system
Front axle system
Rear axle system
Brakes and controls
Hydraulic systems
Frames and ballasting
Steering
Wheels
Cab climate control
Electrical systems
The front loader and bucket
Platform, cab, bodywork, and decals
