Perkins 4.2482/4.248/T4.236/4.236/4.212/T4.38 Diesel Engines Workshop Manuals in PDF

Our manual is for the 4.2482, 4.248, T4.236, 4.236, 4.212, and T4.38 diesel engines and is intended to supplement the repair manual for the 4.236, 4HD76, and Range 4 M90 Marine diesel engines. It contains repair and maintenance information, step-by-step instructions, diagrams, and photos to help troubleshoot any existing faults and problems. It contains diagrams and photos with step-by-step instructions to simplify your understanding of this technique.

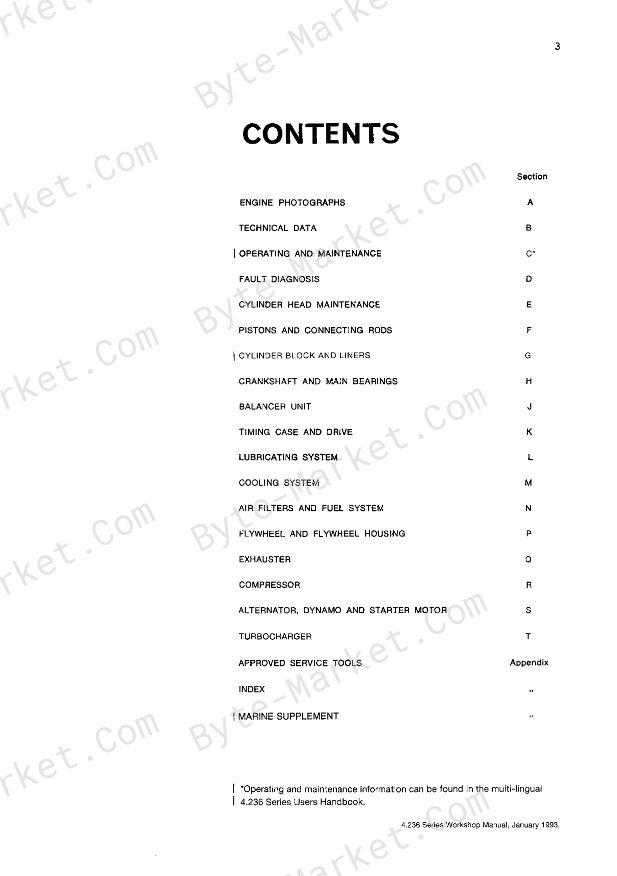

TABLE of CONTENTS:

ENGINE PHOTOGRAPHS
TECHNICAL DATA
OPERATING AND MAINTENANCE
FAULT DIAGNOSIS
CYLINDER AND MAINTENANCE
PISTONS AND CONNECTING RODS
CYLINDER BLOCK AND LINERS
CRANKSHAFT AND MAIN BEARINGS
BALANCER UNIT
TIMING CASE AND DRIVE
LUBRICATING SYSTEM
COOLING SYSTEM
AIR FILTERS AND FUEL SYSTEM
FLYWHEEL AND FLYWHEEL HOUSING
EXHAUSTER
COMPRESSOR
ALTERNATOR, DYNAMO AND STARTER MOTOR
TURBOCHARGER
APPROVED SERVICE TOOLS
INDEX
