Kubota Workshop Manual
Kubota KC120 Workshop Manual
Document number RY911-29270 · English PDF edition · 57 pages
About this manual
Kubota published this Workshop Manual for the KC120 dumper models. It brings the documented service and technical-reference material for those named dumpers into a single publication.
Its documented technical value includes emission data for service checks and specification lookup. Use the values and conditions stated in the PDF for the applicable model and procedure.
Use the Manual Contents below to check that the exact repair, inspection, or maintenance procedure you need is included in this publication.
Manual details
- Manufacturer
- Kubota
- Manual type
- Workshop Manual
- Models
- KC120
- Document number
- RY911-29270
- Publication year
- 2020
- Language
- English
- Page count
- 57
Product highlights
Electrical systems
The manual includes wiring diagrams, connector views, and pinouts.
Hydraulic systems
The manual includes hydraulic pressure-test material.
Special tools
A special-tools section is included.

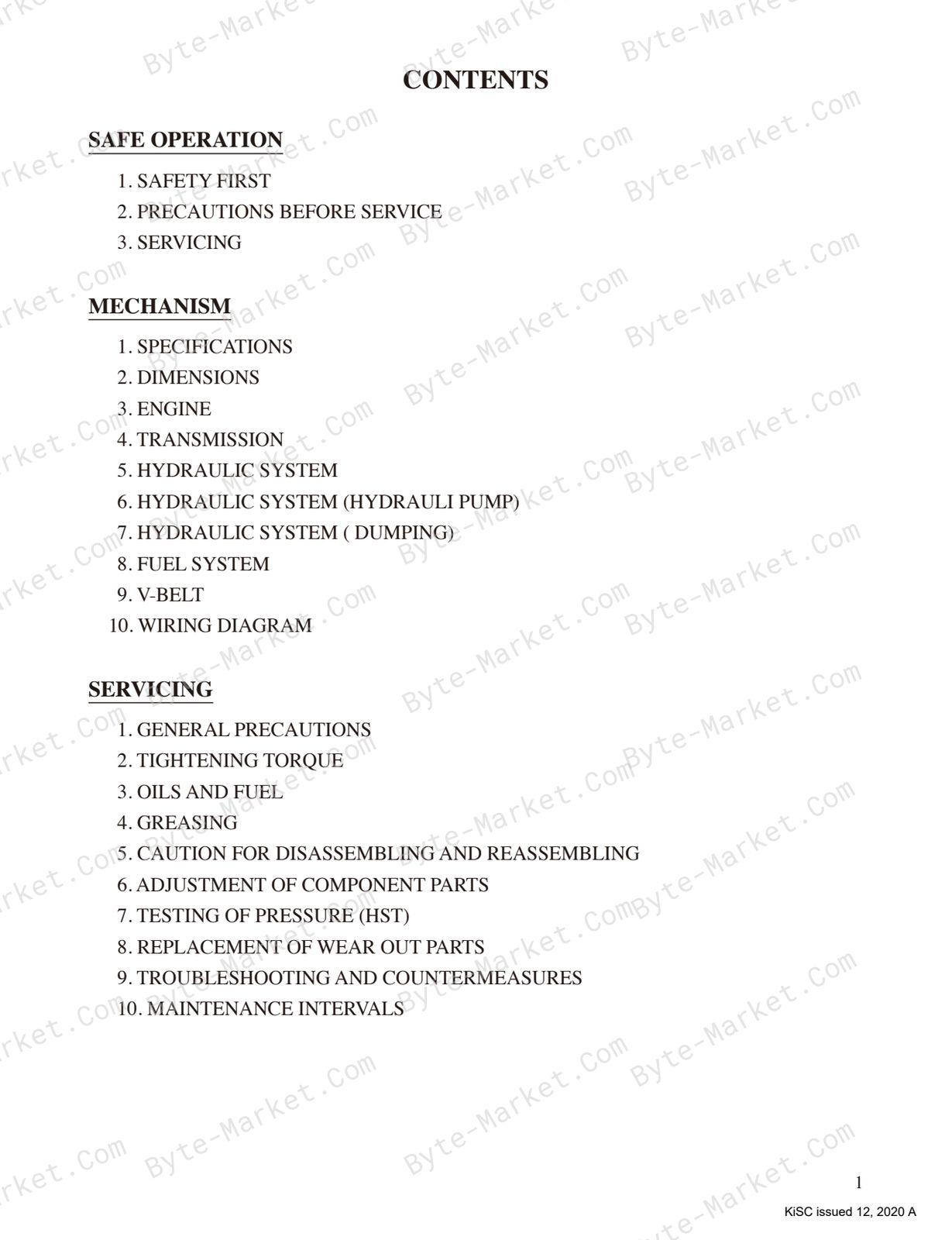

Manual contents
Use these source headings to locate the task or system you need in the PDF.
- SAFE OPERATION — p. 2
- 1. SAFETY FIRST — p. 3
- 2. PRECAUTIONS BEFORE SERVICE — p. 3
- 3. ENGINE — p. 14
- 4. TRANSMISSION — p. 17
- 5. HYDRAULIC SYSTEM — p. 18
- 7. HYDRAULIC SYSTEM ( DUMPING) — p. 22
- 8. FUEL SYSTEM — p. 23
- 9. V-BELT — p. 24

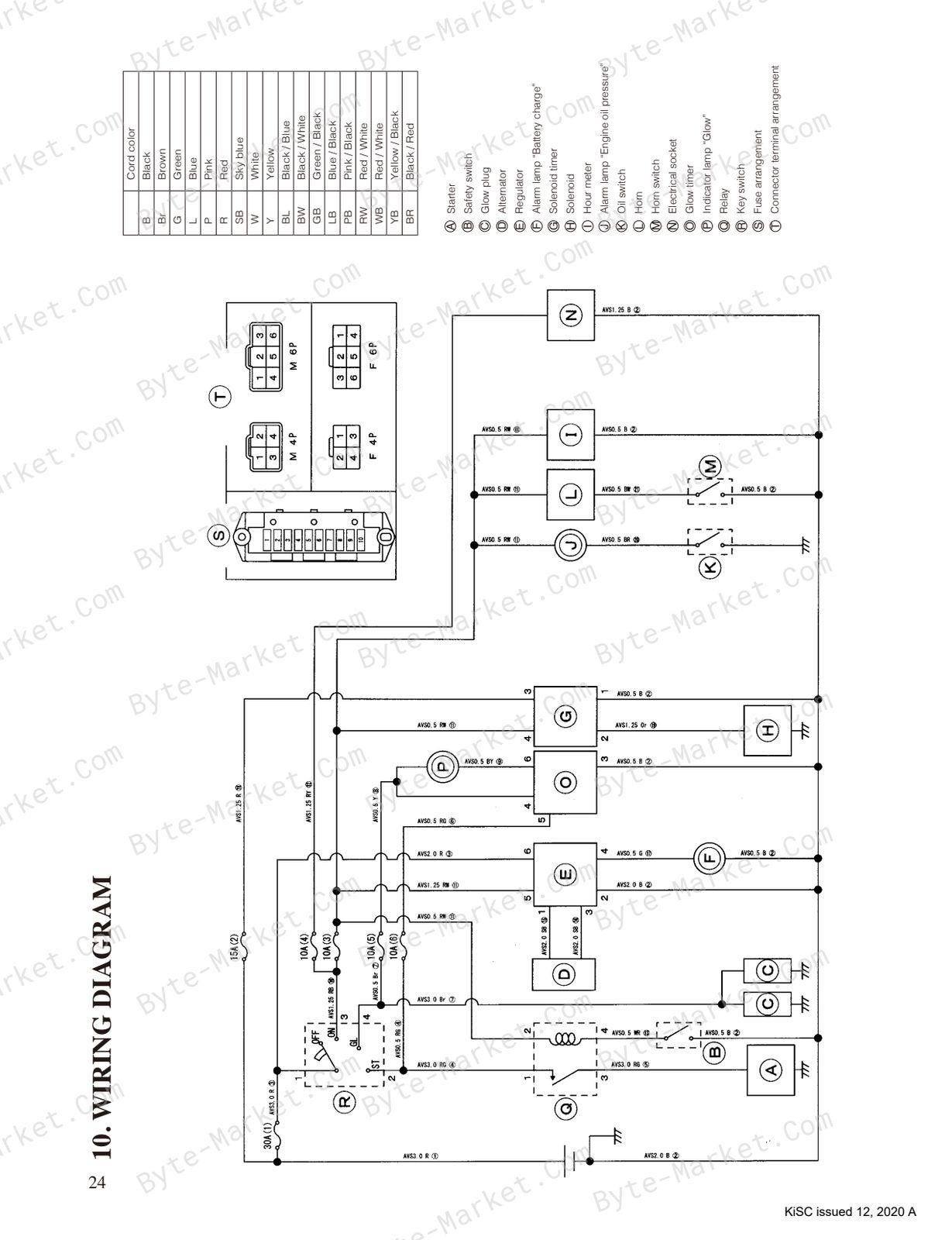

- 10. WIRING DIAGRAM — p. 25
- 1. GENERAL PRECAUTIONS — p. 27
- 3. OILS AND FUEL — p. 36
- 4. GREASING — p. 40
- 5. CAUTION FOR DISASSEMBLING AND REASSEMBLING — p. 43
- 6. ADJUSTMENT OF COMPONENT PARTS — p. 45
- 7. TESTING OF PRESSURE (HST) — p. 50
- 9. TROUBLESHOOTING AND COUNTERMEASURES — p. 53
- 10. MAINTENANCE INTERVALS — p. 56
Capabilities
The source outline indexes servicing instructions, disassembly and assembly, checking and adjustment, troubleshooting, and maintenance tasks. Use these source-backed headings to locate the applicable task or system in the source PDF, then confirm model-specific notes, specifications, illustrations, and operating conditions at the relevant page before carrying out service work.
Keep the source's safety sequence, prerequisite steps, labels, units, configuration notes, and footnotes with the selected task; do not apply an isolated value outside the conditions stated in the manual.
Delivery
This manual is supplied as a digital PDF file and is available for instant download after purchase. No physical media is shipped.
References
Kubota Workshop Manual for Dumper, document code RY911-29270, PDF edition.
