Kubota KX016-4, KX018-4, KX019-4, and KX019-4SF Assembly and Instruction Manual — W92AA-D191-5

About this manual

Kubota published this Assembly and Instruction Manual for KX016-4, KX018-4, KX019-4, and KX019-4SF. It is intended for assembly sequence, installation, setup, and source-supported adjustment, where those subjects appear in the source publication.

Use the Manual Contents below to check that the exact assembly, installation, setup, or adjustment step you need is included in this publication.

Manual details

Manufacturer

Kubota

Manual type

Assembly and Instruction Manual

Models

KX016-4, KX018-4, KX019-4, and KX019-4SF

Document number

W92AA-D191-5

Publication year

2023

Language

English

Page count

144

Product highlights

Maintenance

The manual includes a maintenance schedule.

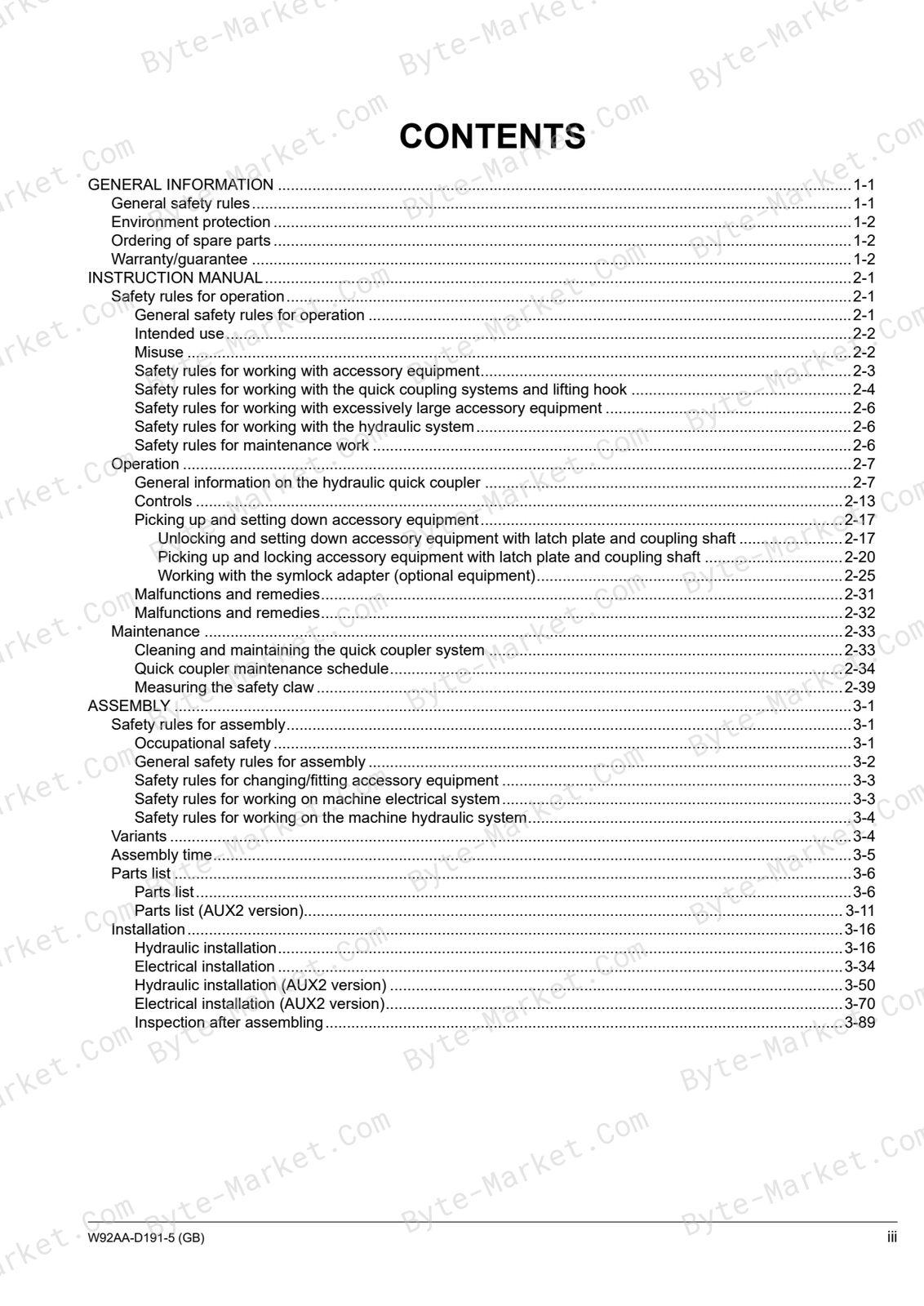

Manual contents

Use these source headings to locate the task or system you need in the PDF.

• CONTENTS — p. 5
• GENERAL INFORMATION — p. 7
  • General safety rules — p. 7
  • Environment protection — p. 8
  • Ordering of spare parts — p. 8
  • Warranty/guarantee — p. 8
• INSTRUCTION MANUAL — p. 9
  • Safety rules for operation — p. 9
    • General safety rules for operation — p. 9
    • Intended use — p. 10
    • Misuse — p. 10
    • Safety rules for working with accessory equipment — p. 11
    • Safety rules for working with the quick coupling systems and lifting hook — p. 12
    • Safety rules for working with excessively large accessory equipment — p. 14
    • Safety rules for working with the hydraulic system — p. 14
    • Safety rules for maintenance work — p. 14
  • Operation — p. 15

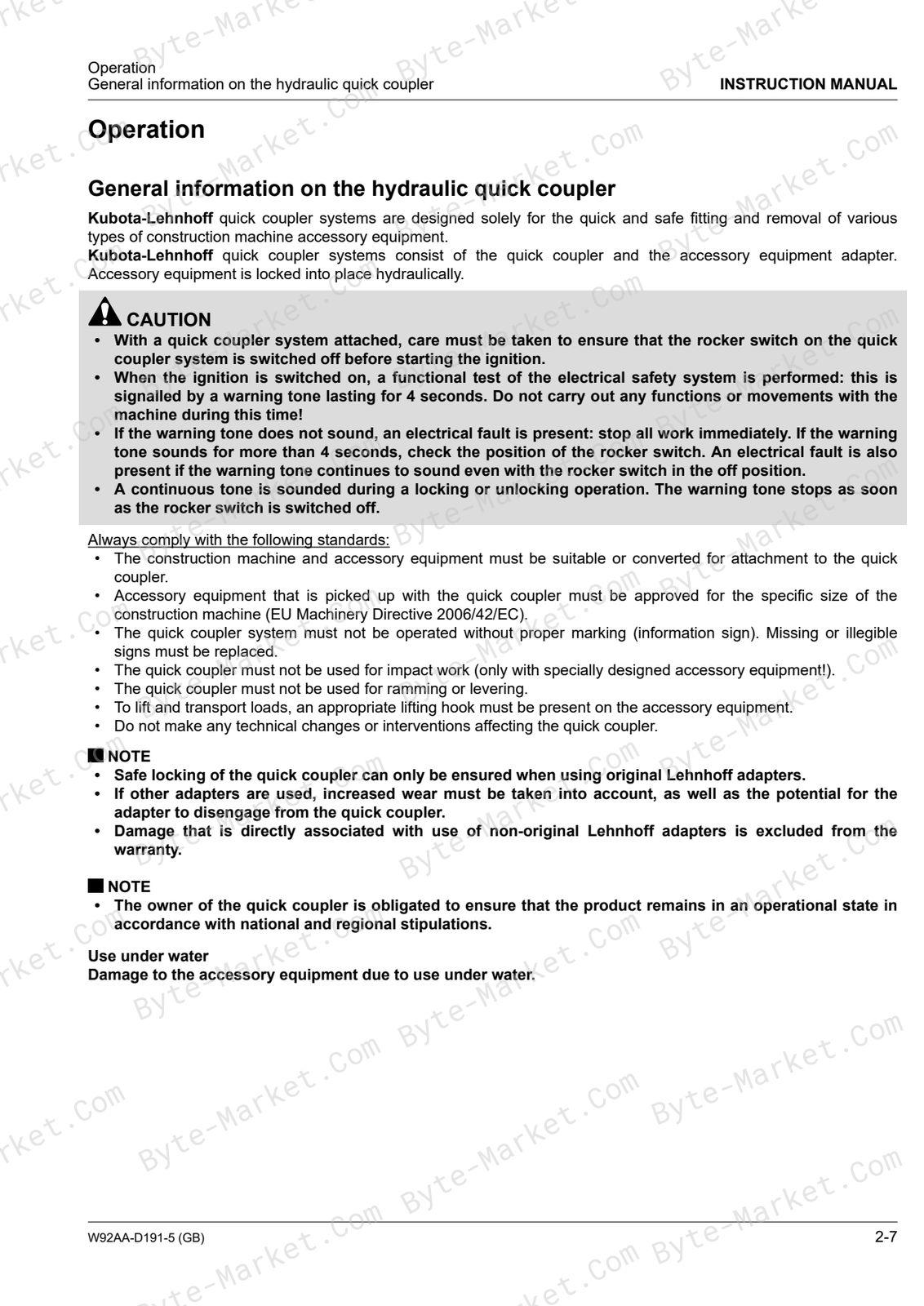

    • General information on the hydraulic quick coupler — p. 15
    • Controls — p. 21
    • Picking up and setting down accessory equipment — p. 25
      • Unlocking and setting down accessory equipment with latch plate and coupling shaft — p. 25
      • Picking up and locking accessory equipment with latch plate and coupling shaft — p. 28
      • Working with the symlock adapter (optional equipment) — p. 33
    • Malfunctions and remedies — p. 39
    • Malfunctions and remedies — p. 40
  • Maintenance — p. 41
    • Cleaning and maintaining the quick coupler system — p. 41

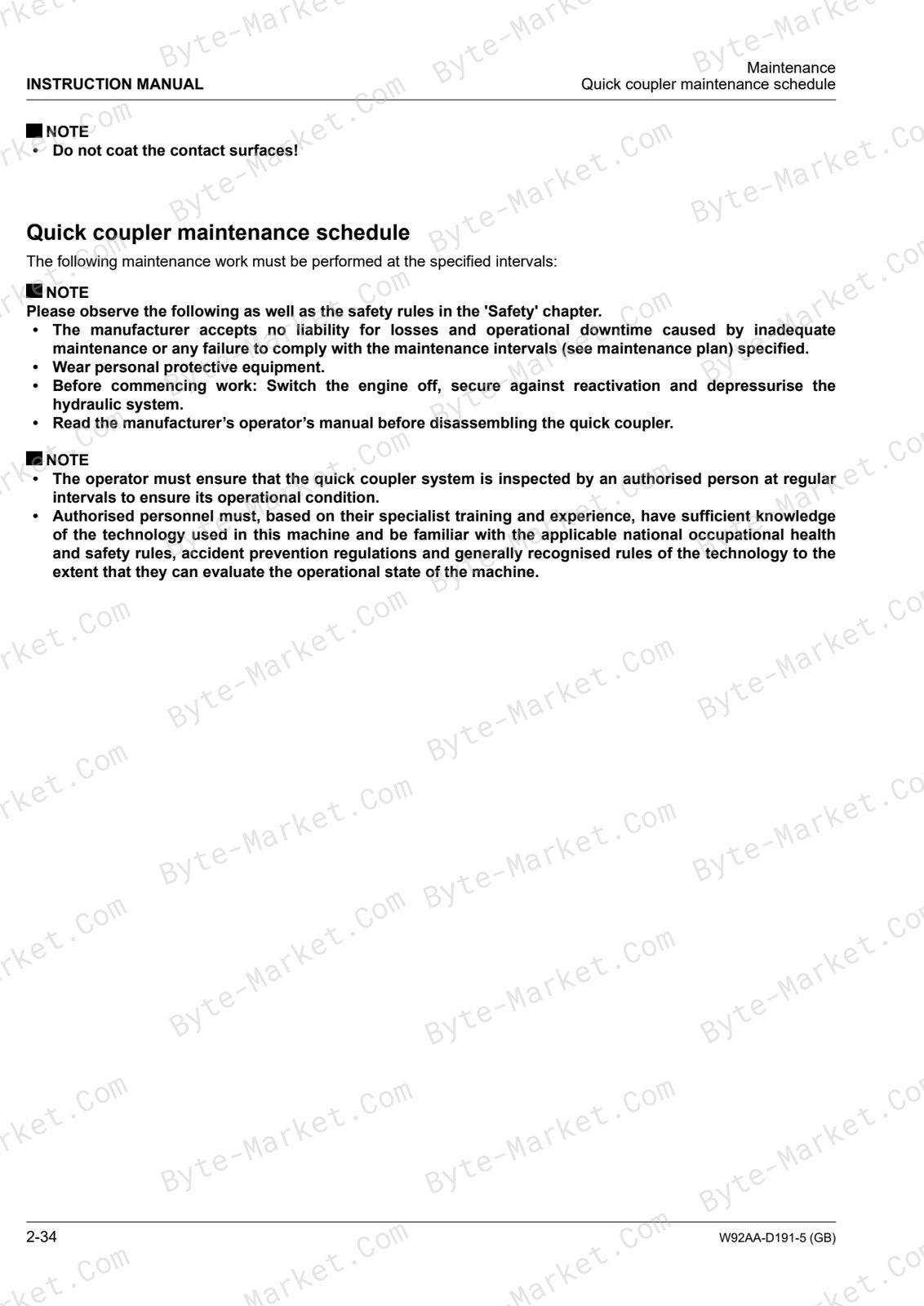

    • Quick coupler maintenance schedule — p. 42
    • Measuring the safety claw — p. 47
• ASSEMBLY — p. 53
  • Safety rules for assembly — p. 53
    • Occupational safety — p. 53
    • General safety rules for assembly — p. 54
    • Safety rules for changing/fitting accessory equipment — p. 55
    • Safety rules for working on machine electrical system — p. 55
    • Safety rules for working on the machine hydraulic system — p. 56
  • Variants — p. 56
  • Assembly time — p. 57
  • Parts list — p. 58
    • Parts list — p. 58
    • Parts list (AUX2 version) — p. 63
  • Installation — p. 68
    • Hydraulic installation — p. 68
    • Electrical installation — p. 86
    • Hydraulic installation (AUX2 version) — p. 102
    • Electrical installation (AUX2 version) — p. 122
    • Inspection after assembling — p. 141
• INDEX — p. 143

Capabilities

The source outline indexes assembly and installation. Use these source-backed headings to locate the applicable assembly or installation step in the source PDF, then confirm model-specific notes, specifications, illustrations, and operating conditions at the relevant page before carrying out installation work.

Keep the source's safety sequence, prerequisite steps, labels, units, configuration notes, and footnotes with the selected task; do not apply an isolated value outside the conditions stated in the manual.

Delivery

This manual is supplied as a digital PDF file and is available for instant download after purchase. No physical media is shipped.

References

Kubota Assembly and Instruction Manual for Excavator Accessory, document code W92AA-D191-5, PDF edition.
