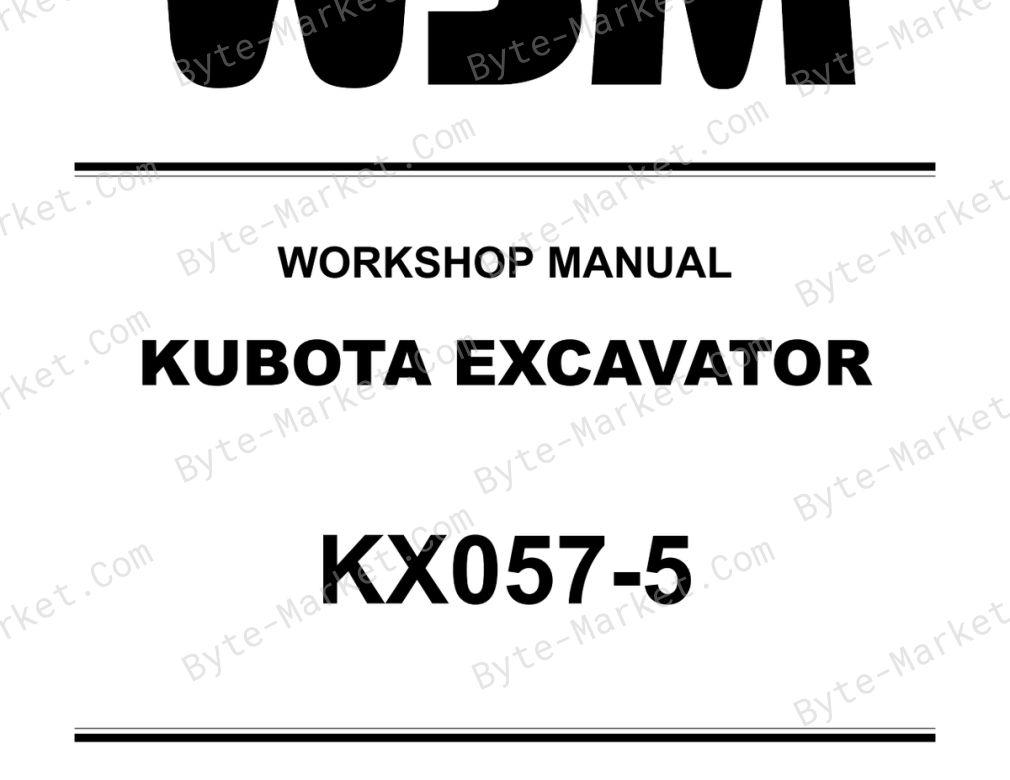

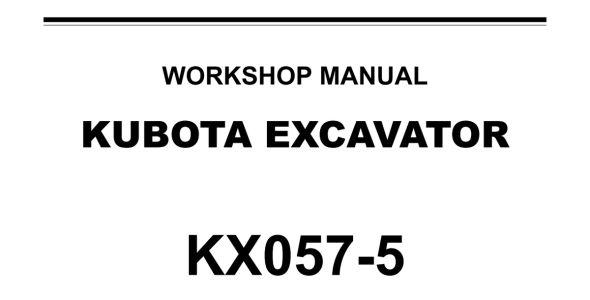

Kubota KX057-5 Workshop Manual PDF - RY911-28157
Overview
This English-language workshop manual provides maintenance, troubleshooting and repair information for the Kubota KX057-5 excavator. The 838-page PDF combines explanations of machine systems with inspection, adjustment, removal, installation and servicing procedures. It includes hydraulic and electrical circuit information, service specifications and service limits for checking components.
Manual Details and Coverage
- Manufacturer
- Kubota
- Equipment model
- KX057-5 excavator
- Manual type
- Workshop Manual
- Document number
- RY911-28157
- Language
- English
- Length
- 838 PDF pages
- Format
Check the machine model and document number when selecting this manual.
Manual Scope
The manual covers the excavator's machine body, engine-related systems, hydraulics, electrical equipment, and air conditioning and heater system. Its mechanism sections explain component structure and operation; servicing sections provide maintenance, troubleshooting and repair procedures.
For engine servicing information, the source also refers to a companion engine workshop manual. The following reference identifies a related publication; it is not a statement that an additional PDF is included with this download.
- Companion publication
- Engine Workshop Manual: V2607-CR-E5, V2607-CR-TE5, V2607-CR-TIE5, V3307-CR-TE5 and V3307-CR-TIE5
- English document number
- 9Y311-00077
Product Highlights
- Maintenance intervals, lubricant quantities, recommended lubricants and routine inspection procedures.

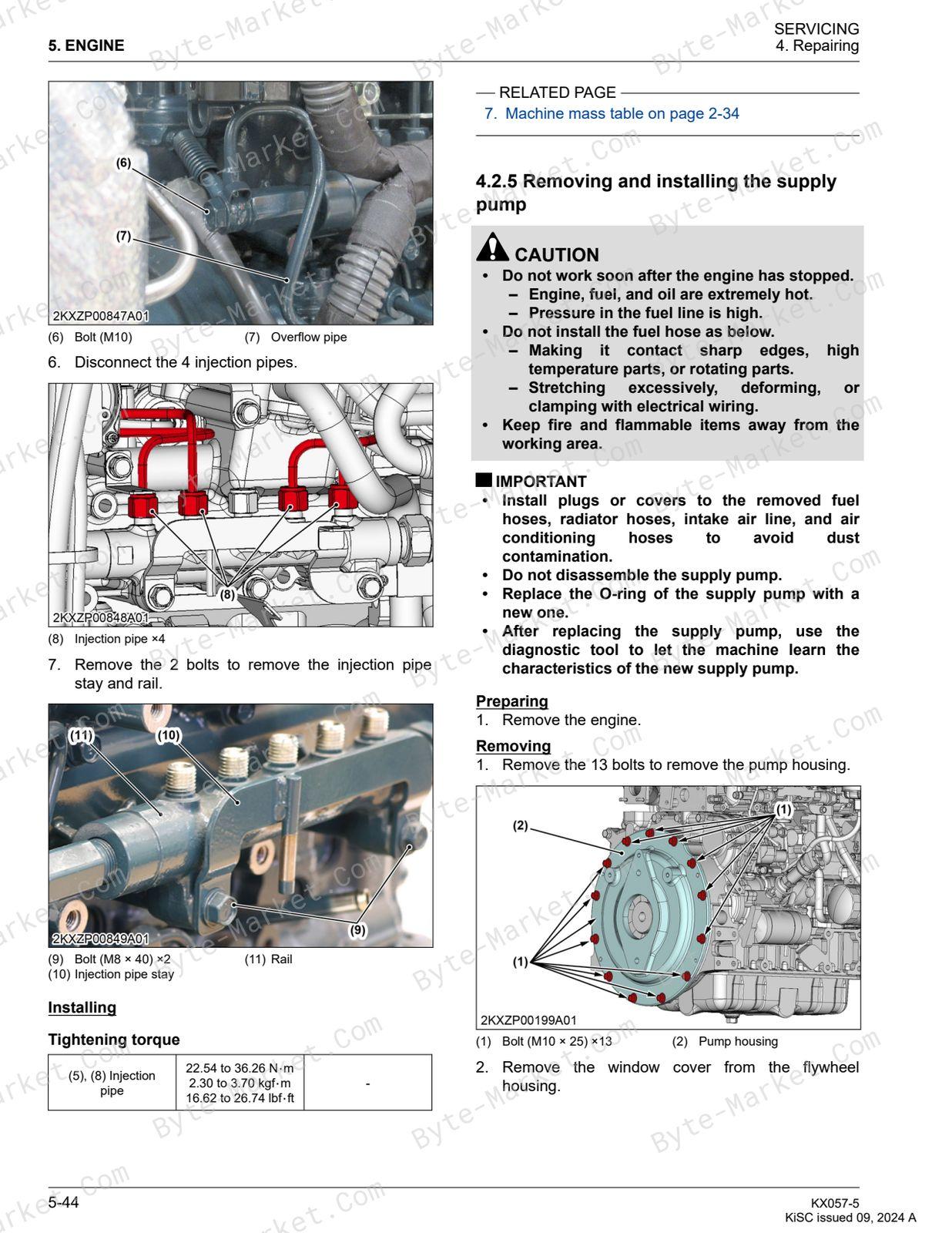

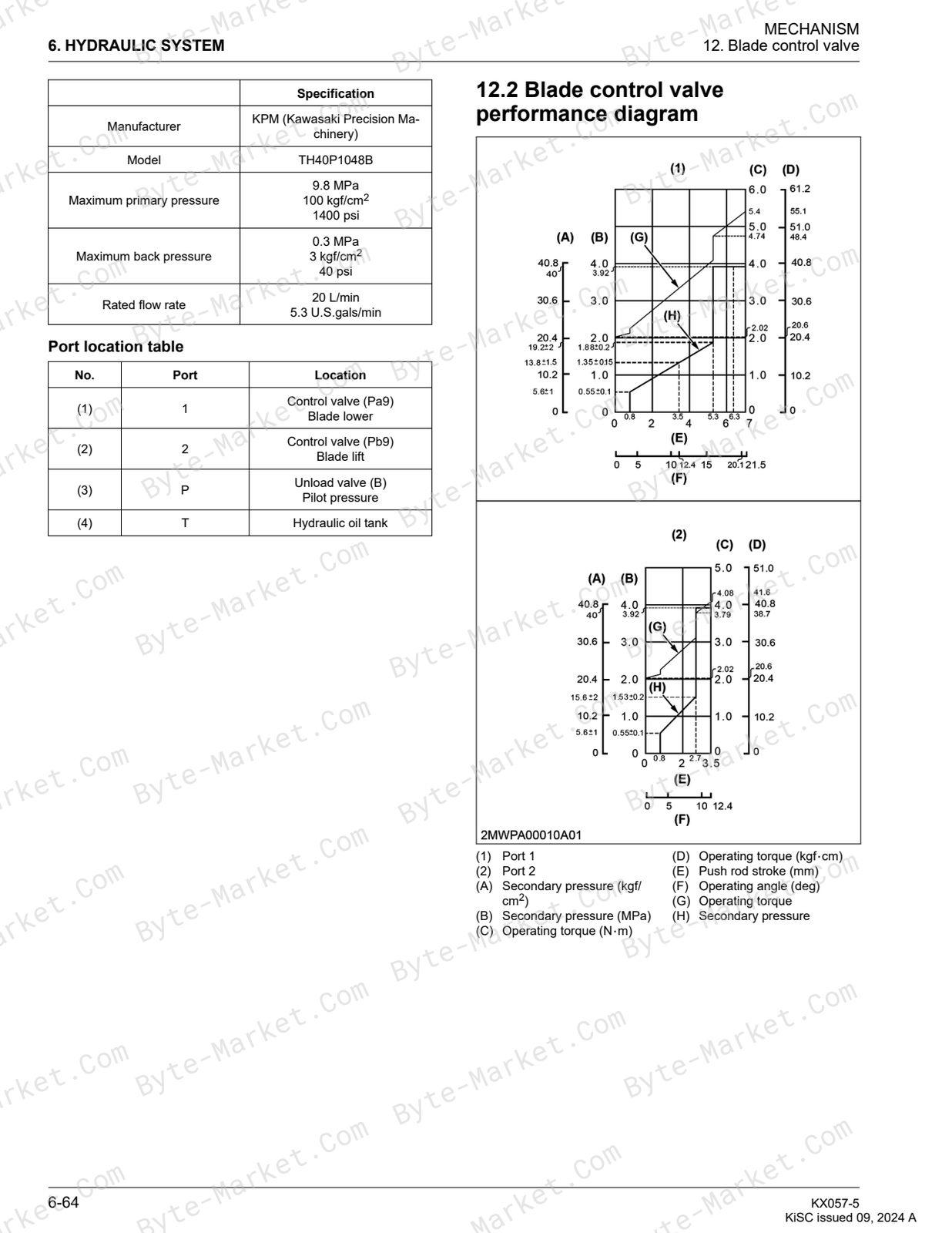

- Hydraulic pump, control valve, motor and cylinder service information, including measurement and adjustment procedures.
- Electrical device layouts, functional circuit diagrams and troubleshooting information.
- Machine-body service procedures and air conditioning and heater system diagnosis.
- Tightening torques, service specifications and service limits organized alongside the relevant service work.

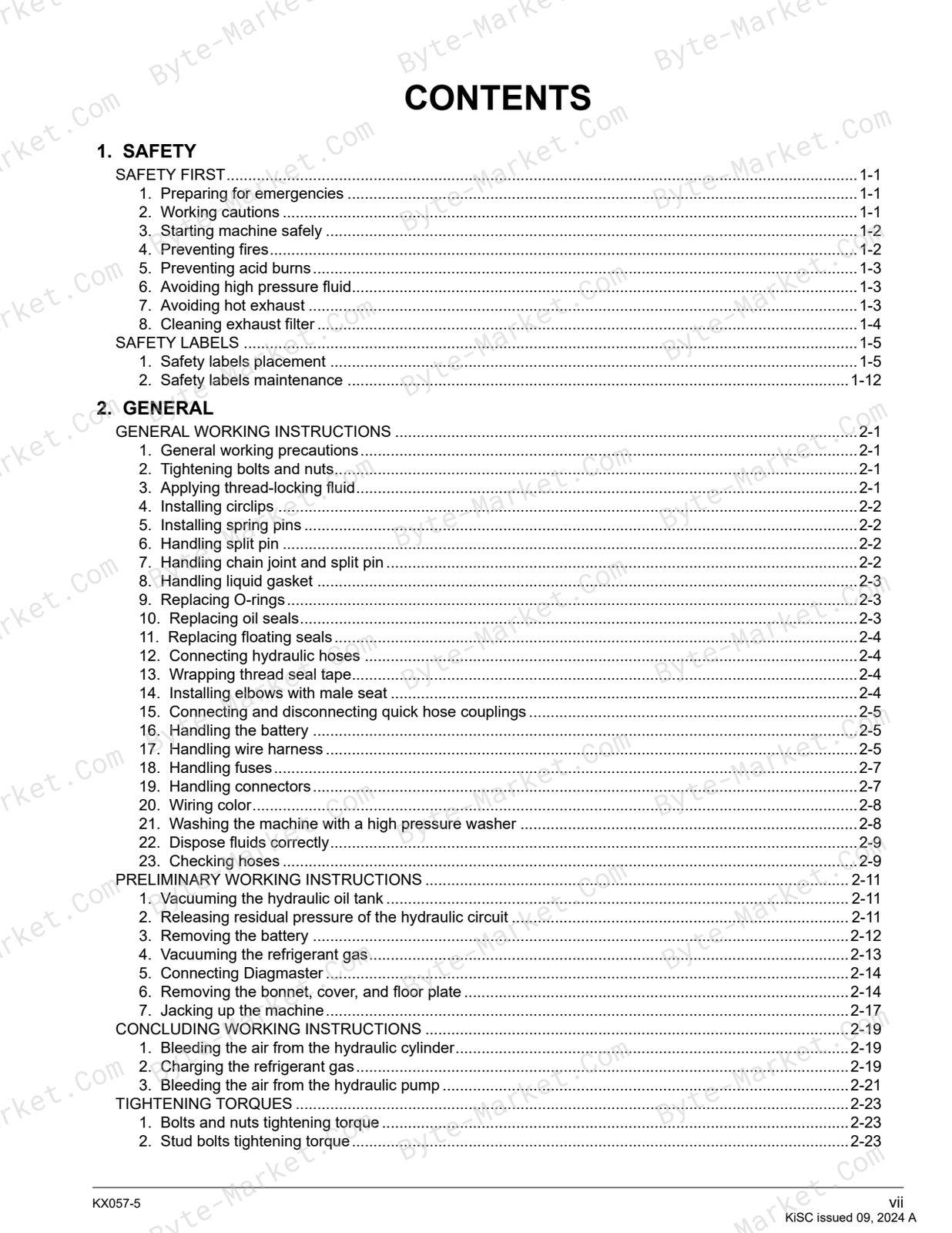

Manual Contents
- Safety
- General
- Maintenance
- Machine Body
- Engine
- Hydraulic System
- Electrical System
- Air Conditioning and Heater System
- Appendices
Systems and Service Coverage
The hydraulic section covers component functions and service work on the pump, valves, motors, cylinders, oil tank and hoses. The electrical section includes circuits for power supply, battery charging, engine starting, lever lock and travel-speed shifting. Air conditioning coverage includes troubleshooting, service specifications, unit removal and installation, and hose routing.
Technical Reference Data
Use the manual's torque tables, lubricant information, component measurements and service limits with the instructions for the relevant assembly. Service specifications describe the reference condition; service limits support decisions about repair, overhaul or replacement. The PDF retains the tables, diagrams and procedural context needed to interpret these values.
Delivery
Supplied as a digital PDF download. No printed manual or physical media is shipped.
Reference
Kubota KX057-5 Workshop Manual, document RY911-28157, English-language PDF.
