Repair manual • Code No. 86608042
About this manual
New Holland published this Repair Manual for 84 Series tractors: 9184, 9384, 9484, 9684, and 9884. The composite PDF includes the Engine Section 1 publication and Volume 2 Sections 2–13, providing service and repair information for the listed tractors.
Inside, buyers can find engine removal and installation information together with fuel-system, electrical-system, transmission, axle, brake, PTO, hydraulic, steering, cab, climate-control, and three-point-hitch coverage. Review the Manual Contents to confirm that the exact system or procedure needed is included.
Manual details
- Supported models
- 9184, 9384, 9484, 9684, 9884
- Document number
- 86608042
- Language
- English
- PDF pages
- 2748
Applicability and key coverage
- Supported models: 9184, 9384, 9484, 9684, and 9884.
- Global serial/P.I.N. range: not specified in the verified source.
- Engine variants: C8.3 (9184), M11 (9384/9484), and N14 (9684/9884).

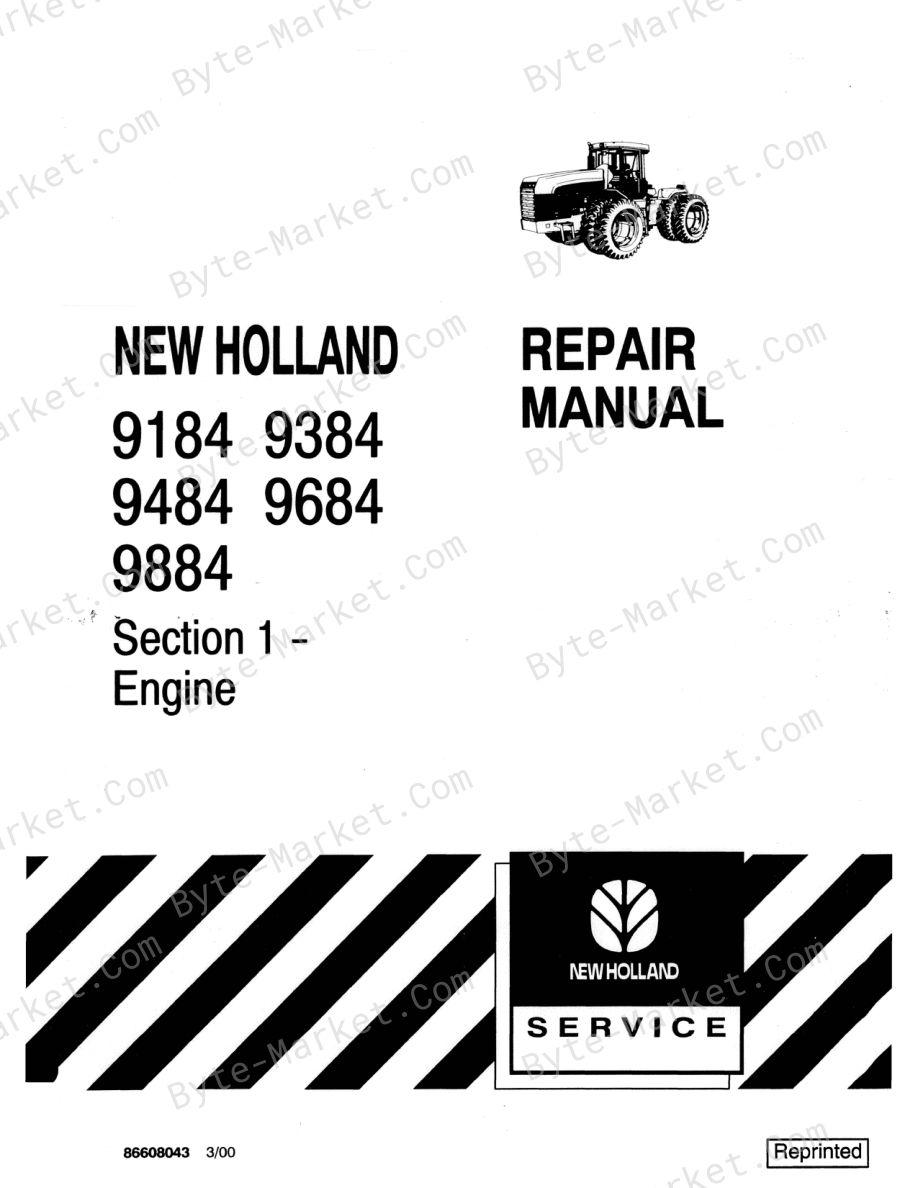

- Section scope: the PDF includes Engine Section 1 publication 86608043 and Volume 2 Sections 2–13.
Engine coverage
Engine removal and installation are included. The verified source says that internal engine repair is performed by an authorized Cummins dealer; internal overhaul, rebuild, cylinder-head, cylinder-block, crankshaft, and piston repair are not presented here as included.
Electrical diagrams
Wiring diagrams are included.
Hydraulic diagrams
Hydraulic diagrams are unresolved in the verified source; their inclusion is not claimed.
Required separate publications
None stated in the verified source.

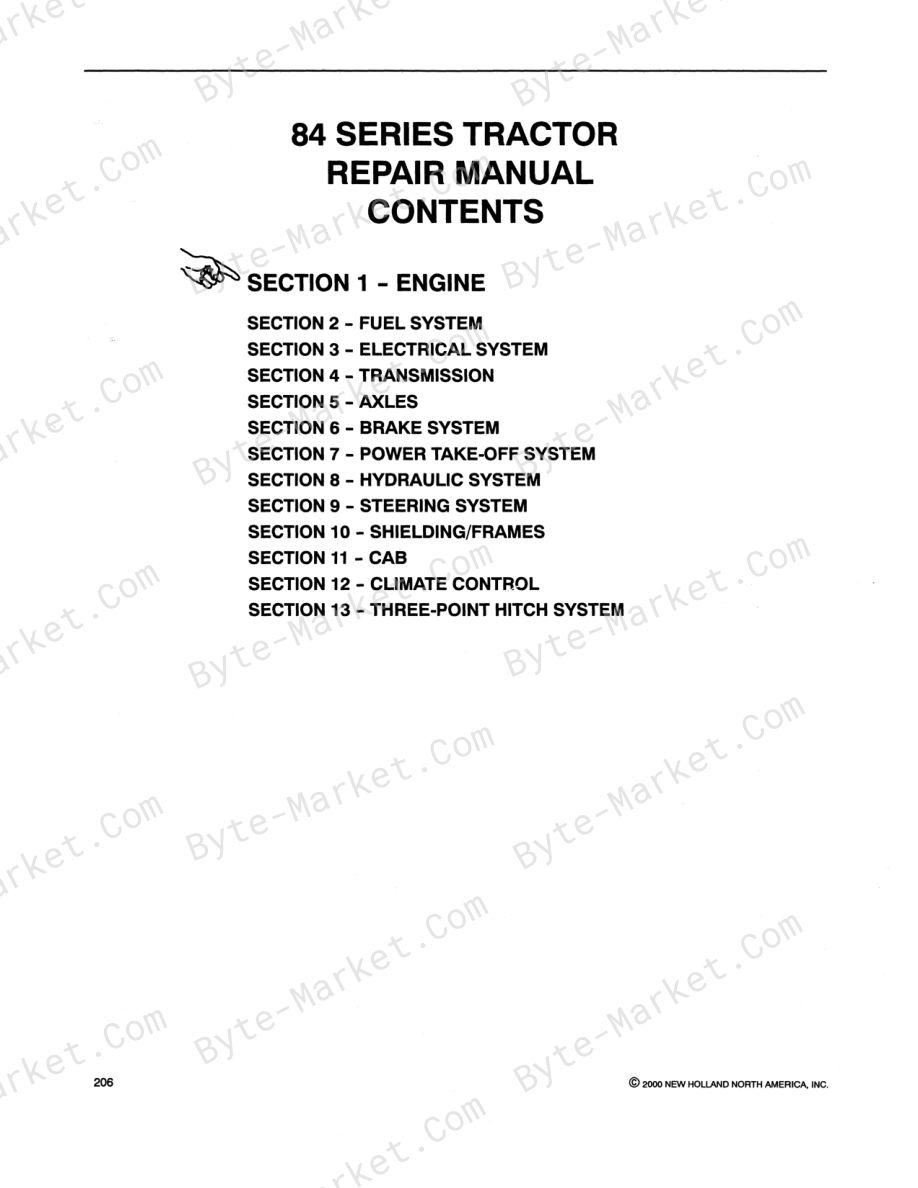

Manual Contents
This selected contents view follows the source order and shows major sections with representative topics.

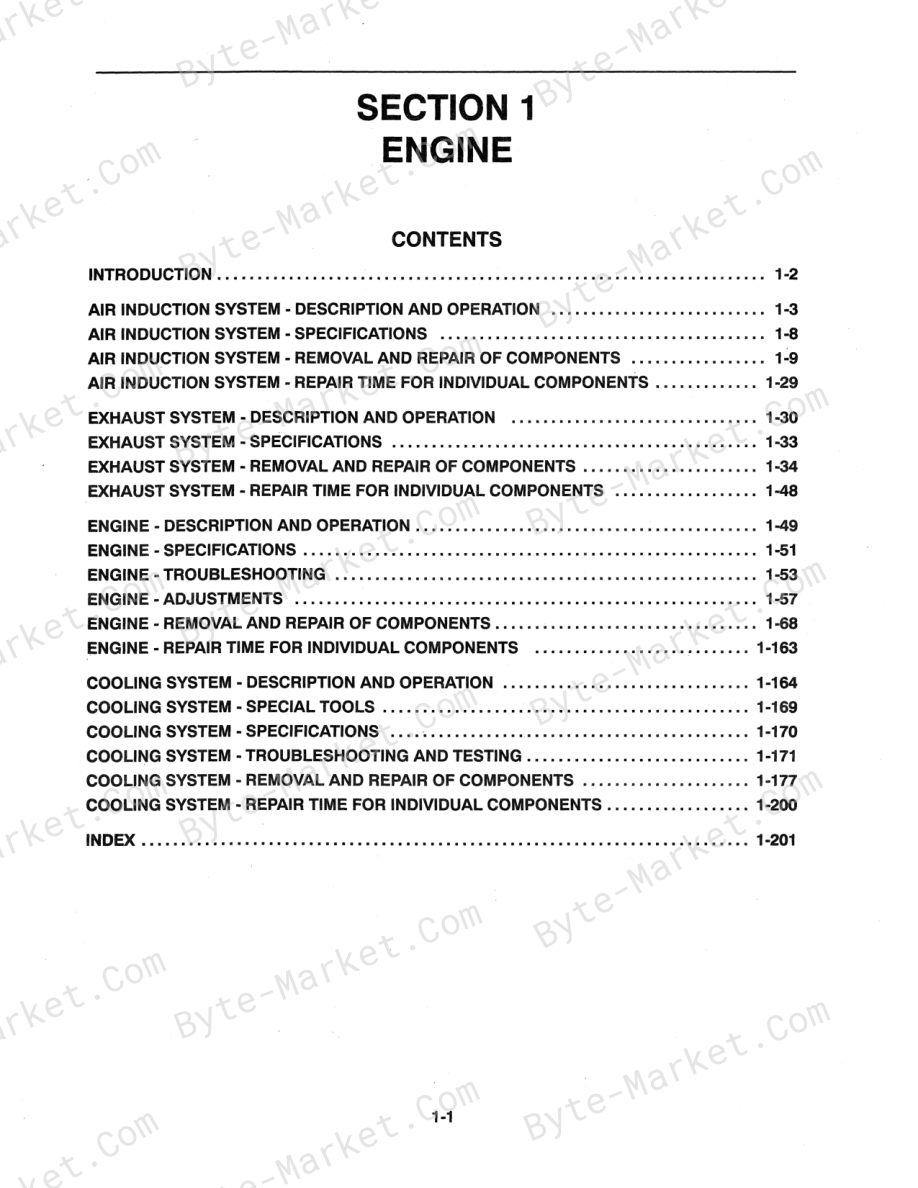

- Section 1 Engine
- Air Induction System - Description and Operation
- Air Induction System - Specifications
- Engine - Description and Operation
- Engine - Specifications
- Engine Removal and Installation
- Cooling System
- Section 2 Fuel System
- Description and Operation
- Specifications
- Troubleshooting
- Removal and Repair of Components
- Section 3 Electrical System
- Description and Operation
- Troubleshooting
- Specifications
- Individual System Circuits
- Section 4 Transmission
- Description and Operation
- Specifications
- Troubleshooting and Testing
- Removal and Repair of Components
- Section 5 Axles
- Description and Operation
- Specifications
- Troubleshooting and Testing
- Removal and Repair of Components
- Section 6 Brake System
- Description and Operation
- Specifications
- Troubleshooting and Testing
- Removal and Repair of Components
- Section 7 Power Take-Off System
- Description and Operation
- Specifications
- Troubleshooting and Testing
- Removal and Repair of Components
- Section 8 Hydraulics System
- Description and Operation
- Specifications
- Troubleshooting and Testing
- Removal and Repair of Components
- Section 9 Steering
- Description and Operation
- Specifications
- Troubleshooting and Testing
- Removal and Repair of Components
- Section 10 Shielding/Frames
- Description and Operation
- Specifications
- Troubleshooting
- Removal and Repair of Components
- Section 11 Cab
- Description and Operation
- Specifications
- Troubleshooting and Testing
- Removal and Repair of Components
- Section 12 Climate Control
- Description and Operation
- Specifications
- Troubleshooting & Testing
- Component Removal and Installation
- Section 13 Three-Point Hitch System
- Description and Operation
- Specifications
- Troubleshooting
- Removal and Repair of Components
Delivery
This manual is supplied as a digital PDF file and is available for instant download after purchase. No physical media is shipped.
References
New Holland Repair Manual for Tractor — composite PDF: Section 1 Engine publication 86608043 plus 86608042 Volume 2 Sections 2–13, document code 86608042, PDF edition.
