Takeuchi TB175 Compact Excavator Workshop Manual in PDF

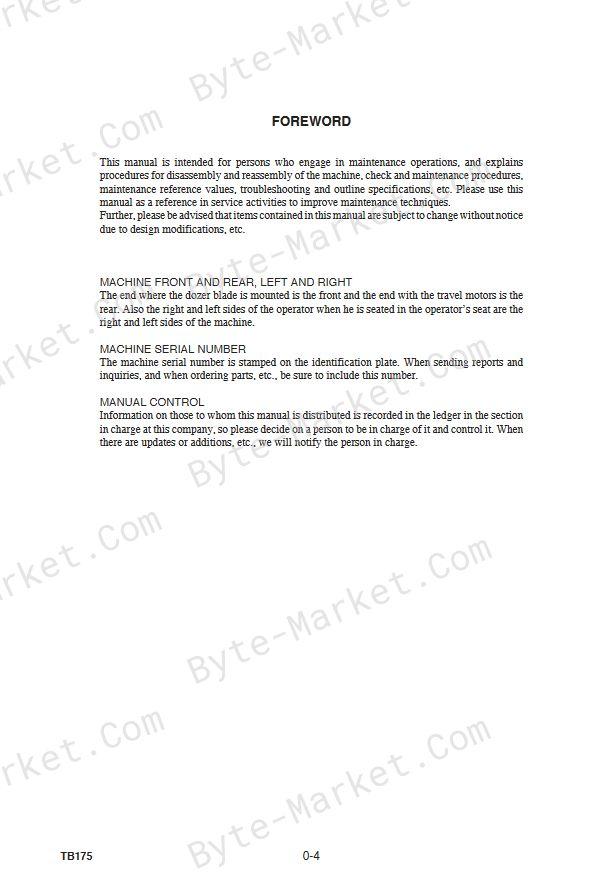

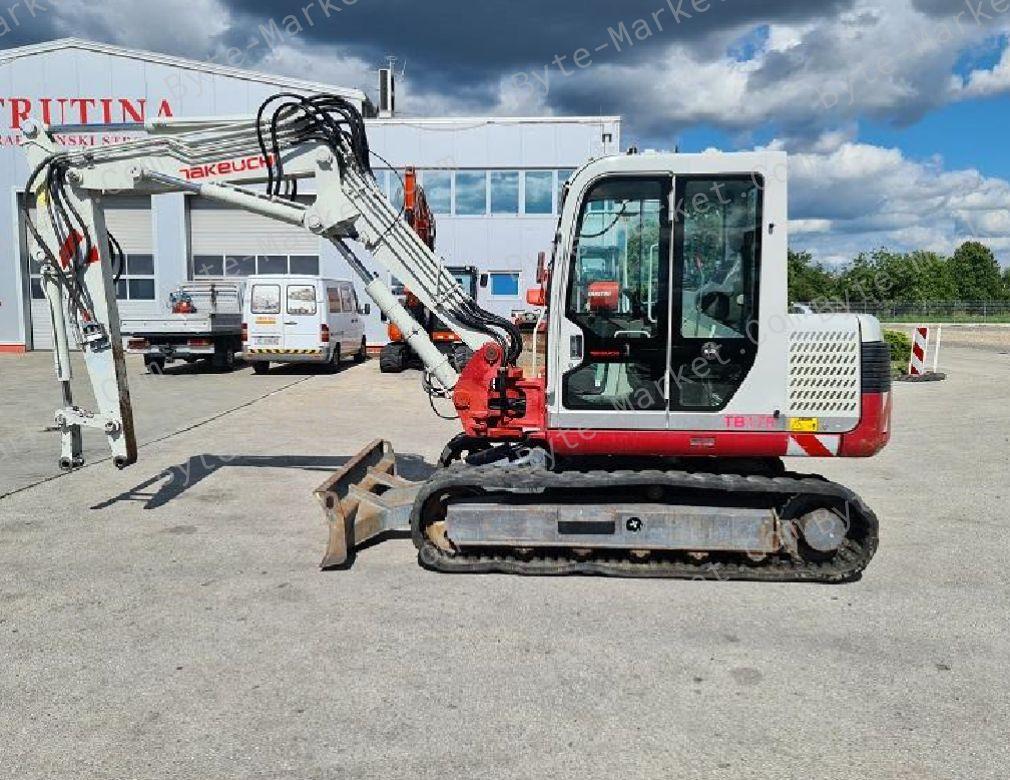

This manual for the Takeuchi TB175 excavator serial number 17510003 is intended for persons engaged in repair and maintenance. The Takeuchi TB175 excavator is manually operated. With our manual, you will be able to properly understand how to operate your excavator and will know the repair procedures for disassembling and reassembling the machine, inspection and maintenance procedures, troubleshooting, and specification descriptions. The Service Manual includes complete repair documentation for servicing Takeuchi's TB175 Series TB175 compact excavators. The manual consists of many essential drawings, instructions and descriptions, electrical and hydraulic system diagrams, technical information, and much more.

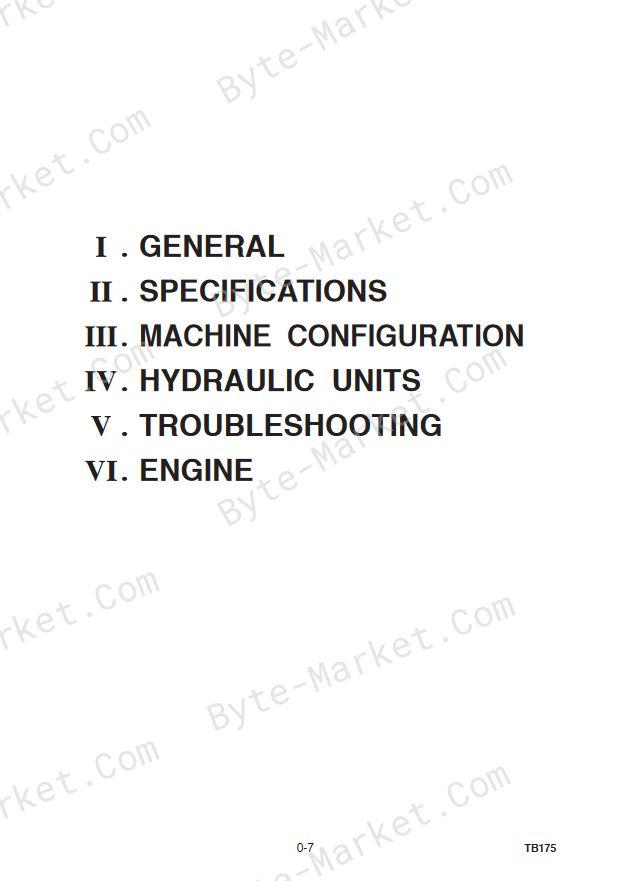

TABLE of CONTENTS:

GENERAL
SPECIFICATIONS
MACHINE CONFIGURATION
HYDRAULIC UNITS
TROUBLESHOOTING
ENGINE
