Kubota D905-E2B, D1005-E2B, V1305-E2B, D1105-E2B, V1505-E2B, D1105-T-E2B, V1505-T-E2B, D905-E2BG, D1005-E2BG, V1305-E2BG, D1105-E2BG, and V1505-E2BG Workshop Manual — 9Y011-02754

About this manual

Kubota published this Workshop Manual for the D905-E2B, D1005-E2B, V1305-E2B, D1105-E2B, V1505-E2B, D1105-T-E2B, V1505-T-E2B, D905-E2BG, D1005-E2BG, V1305-E2BG, D1105-E2BG, and V1505-E2BG engine models. It brings the documented service and technical-reference material for those named engines into a single publication.

Its documented technical value includes torque settings, wear limits, and dimensions for service checks and specification lookup. Use the values and conditions stated in the PDF for the applicable model and procedure.

Use the Manual Contents below to check that the exact repair, inspection, or maintenance procedure you need is included in this publication.

Manual details

Manufacturer

Kubota

Manual type

Workshop Manual

Models

D905-E2B, D1005-E2B, V1305-E2B, D1105-E2B, V1505-E2B, D1105-T-E2B, V1505-T-E2B, D905-E2BG, D1005-E2BG, V1305-E2BG, D1105-E2BG, and V1505-E2BG

Document number

9Y011-02754

Publication year

2005

Language

English

Page count

124

Product highlights

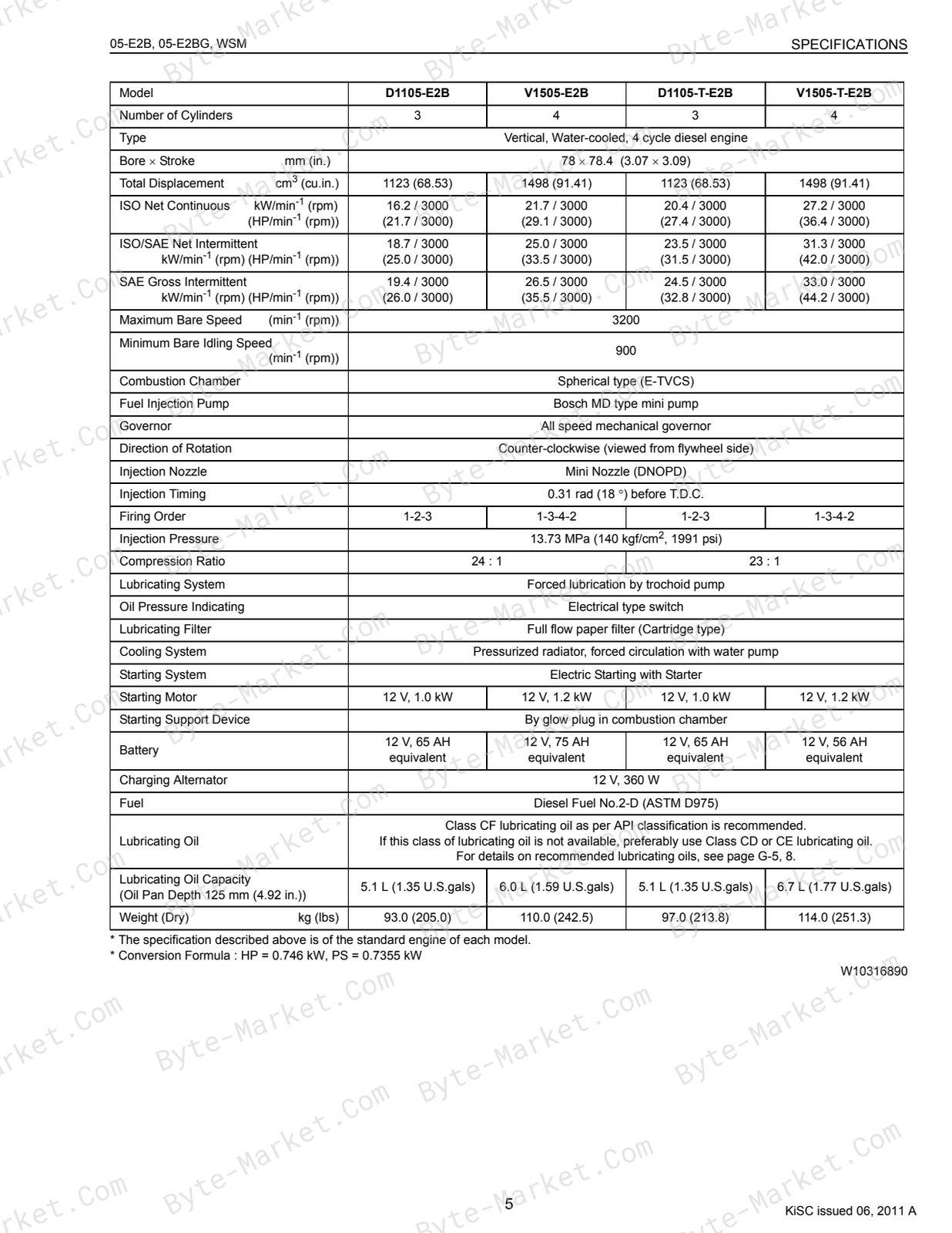

Specifications and settings

The manual includes reference information for torque specifications, wear limits, and dimensions.

Special tools

A special-tools section is included.

Maintenance

The manual includes a maintenance schedule.

Manual contents

Use these source headings to locate the task or system you need in the PDF.

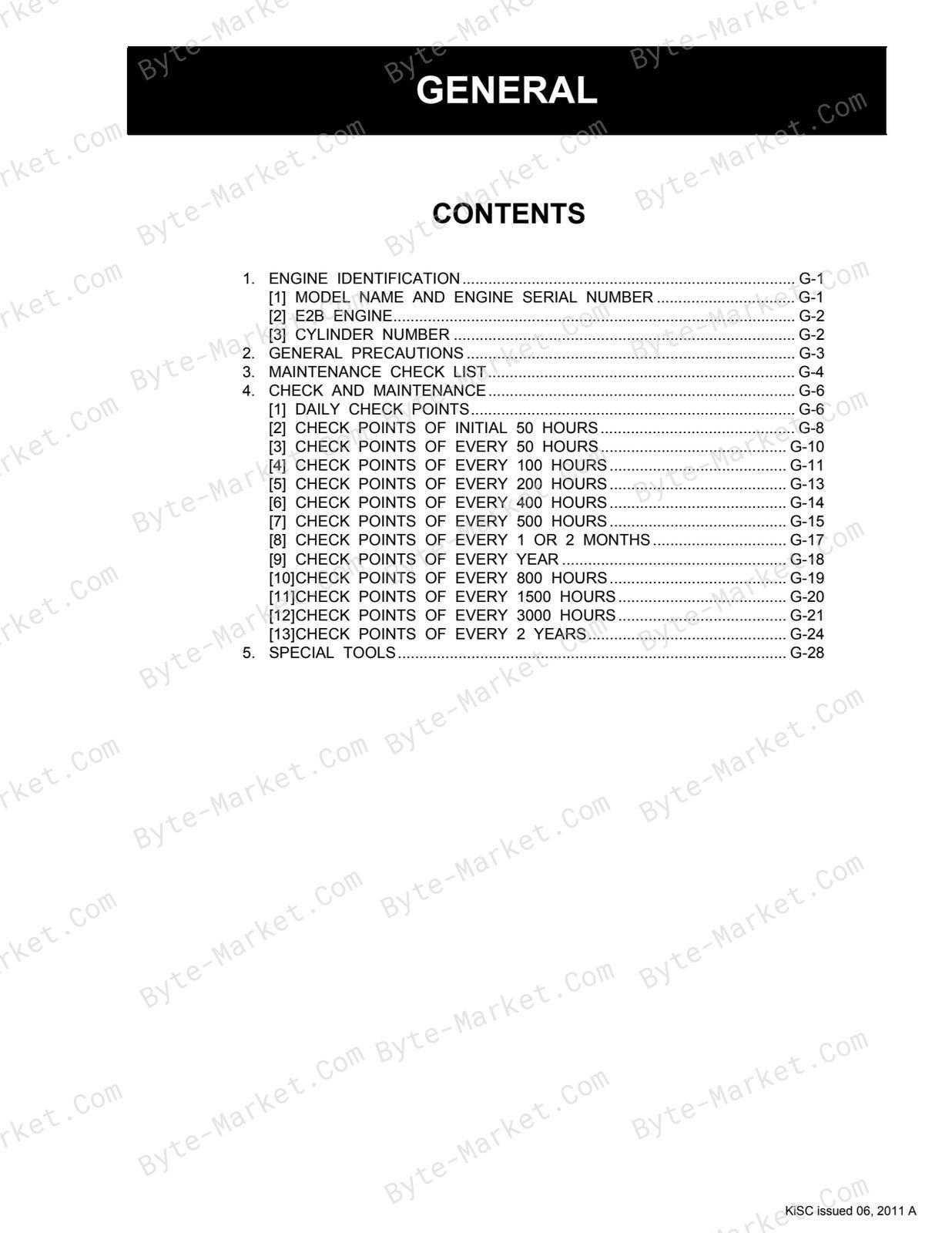

• ENGINE IDENTIFICATION — p. G-1
• [1] MODEL NAME AND ENGINE SERIAL NUMBER — p. G-1
• [2] E2B ENGINE — p. G-2
• [3] CYLINDER NUMBER — p. G-2
• GENERAL PRECAUTIONS — p. G-3
• MAINTENANCE CHECK LIST — p. G-4
• CHECK AND MAINTENANCE — p. G-6
• [1] DAILY CHECK POINTS — p. G-6
• [2] CHECK POINTS OF INITIAL 50 HOURS — p. G-8
• [3] CHECK POINTS OF EVERY 50 HOURS — p. G-10
• [4] CHECK POINTS OF EVERY 100 HOURS — p. G-11
• [5] CHECK POINTS OF EVERY 200 HOURS — p. G-13
  • [6] CHECK POINTS OF EVERY 400 HOURS — p. G-14
  • [7] CHECK POINTS OF EVERY 500 HOURS — p. G-15
  • [8] CHECK POINTS OF EVERY 1 OR 2 MONTHS — p. G-17
  • [9] CHECK POINTS OF EVERY YEAR — p. G-18
  • [10]CHECK POINTS OF EVERY 800 HOURS — p. G-19
  • [11]CHECK POINTS OF EVERY 1500 HOURS — p. G-20
  • [12]CHECK POINTS OF EVERY 3000 HOURS — p. G-21
  • [13]CHECK POINTS OF EVERY 2 YEARS — p. G-24
  • SPECIAL TOOLS — p. G-28
• ENGINE BODY — p. M-1
• [1] CLOSED BREATHER (NATURAL ASPIRATION TYPE ONLY) — p. M-1
• [2] GOVERNOR — p. M-2
• [3] BOOST COMPENSATOR — p. M-4
• TROUBLESHOOTING — p. S-1
• SERVICING SPECIFICATIONS — p. S-5
• TIGHTENING TORQUES — p. S-13
  • AND NUTS — p. S-13
  • AND NUTS — p. S-14
• CHECKING, DISASSEMBLING AND SERVICING — p. S-15
• [1] CHECKING AND ADJUSTING — p. S-15
  • (1) Engine Body — p. S-15
  • (2) Lubricating System — p. S-17
  • (3) Cooling System — p. S-17
  • (4) Fuel System — p. S-19
  • (5) Electrical System — p. S-22
  • (6) Turbocharger — p. S-26
• [2] DISASSEMBLING AND ASSEMBLING — p. S-27
  • (1) Draining Oil and Coolant — p. S-27
  • (2) External Components — p. S-27

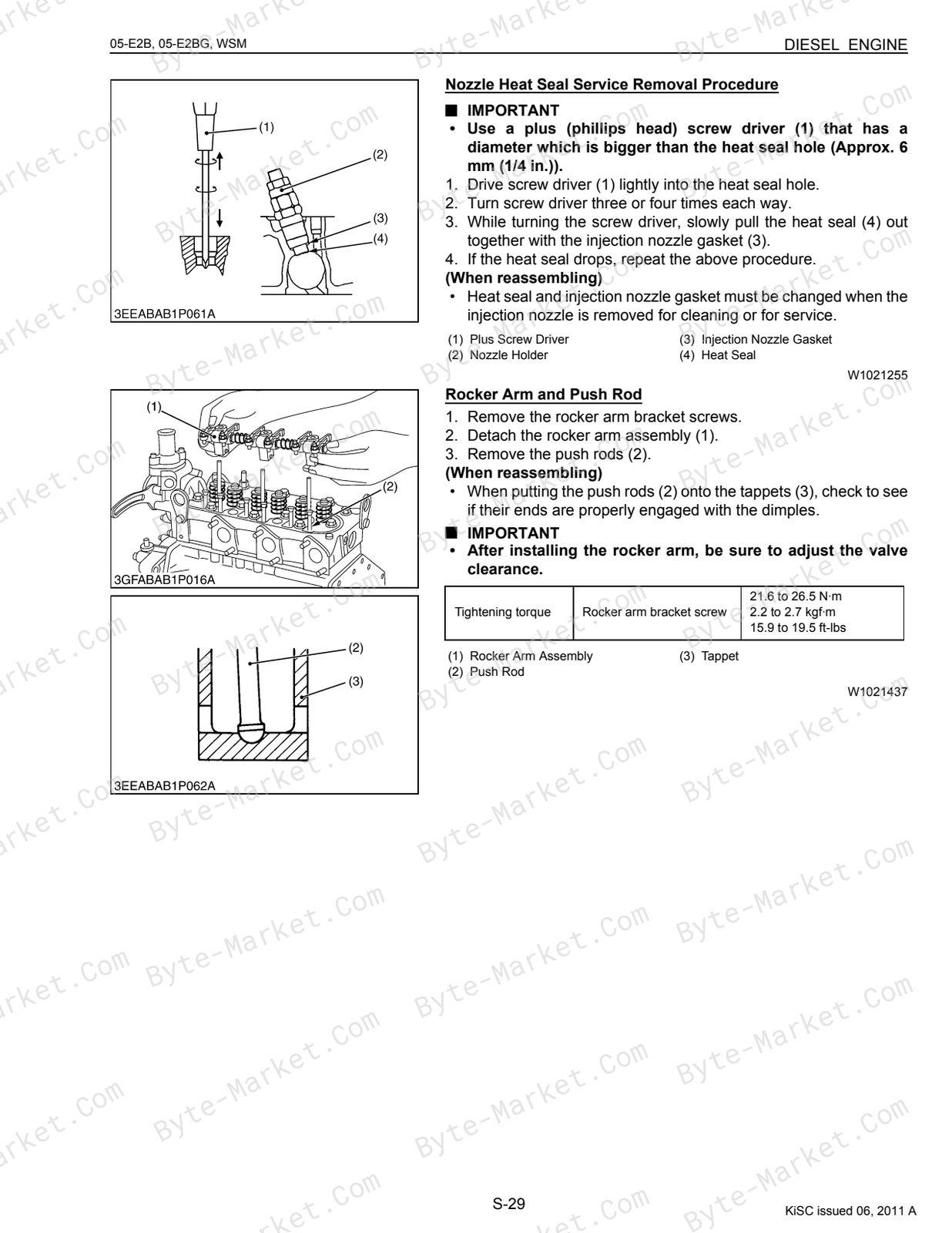

  • (3) Cylinder Head and Valve — p. S-28
  • (4) Gear Case and Timing Gears — p. S-32
  • (5) Piston and Connecting Rod — p. S-37
  • (6) Flywheel and Crankshaft — p. S-40
  • (7) Starter — p. S-42
  • (8) Alternator — p. S-44
• [3] SERVICING — p. S-45
  • (1) Cylinder Head and Valves — p. S-45
  • (2) Timing Gears, Camshaft and Governor Gear — p. S-51
  • (3) Piston and Connecting Rod — p. S-54
  • (4) Crankshaft — p. S-58
  • (5) Cylinder — p. S-63
  • (6) Oil Pump — p. S-64
  • (7) Starter — p. S-65
  • (8) Alternator — p. S-68

Capabilities

The source outline indexes checking and adjustment, maintenance tasks, troubleshooting, servicing instructions, and disassembly and assembly. Use these source-backed headings to locate the applicable task or system in the source PDF, then confirm model-specific notes, specifications, illustrations, and operating conditions at the relevant page before carrying out service work.

Keep the source's safety sequence, prerequisite steps, labels, units, configuration notes, and footnotes with the selected task; do not apply an isolated value outside the conditions stated in the manual.

Technical reference

Reference tables include torque settings, wear limits, and dimensions for service checks, adjustment work, and specification lookup. Use the values and conditions in the PDF for the applicable model and procedure.

• Service limits and settings: torque settings and wear limits.
• Machine specifications: dimensions.

Delivery

This manual is supplied as a digital PDF file and is available for instant download after purchase. No physical media is shipped.

References

Kubota Workshop Manual for Engine, document code 9Y011-02754, PDF edition.
