Kubota V3600-E3B, V3600-T-E3B, V3800DI-T-E3B, V3600-E3CB, V3600-T-E3CB, V3800DI-T-E3CB, V3300-E3BG, V3600-T-E3BG, and V3800DI-T-E3BG Workshop Manual — 9Y121-01041

About this manual

Kubota published this Workshop Manual for the V3600-E3B, V3600-T-E3B, V3800DI-T-E3B, V3600-E3CB, V3600-T-E3CB, V3800DI-T-E3CB, V3300-E3BG, V3600-T-E3BG, and V3800DI-T-E3BG engine models. It brings the documented service and technical-reference material for those named engines into a single publication.

Its documented technical value includes torque settings, wear limits, fluid and system capacities, dimensions, and emission data for service checks and specification lookup. Use the values and conditions stated in the PDF for the applicable model and procedure.

Use the Manual Contents below to check that the exact repair, inspection, or maintenance procedure you need is included in this publication.

Manual details

Manufacturer

Kubota

Manual type

Workshop Manual

Models

V3600-E3B, V3600-T-E3B, V3800DI-T-E3B, V3600-E3CB, V3600-T-E3CB, V3800DI-T-E3CB, V3300-E3BG, V3600-T-E3BG, and V3800DI-T-E3BG

Document number

9Y121-01041

Publication year

2007

Language

English

Page count

203

Product highlights

Electrical systems

The manual includes wiring diagrams.

Specifications and settings

The manual includes reference information for torque specifications, wear limits, capacities, and dimensions.

Special tools

A special-tools section is included.

Maintenance

The manual includes a maintenance schedule.

Manual contents

Use these source headings to locate the task or system you need in the PDF.

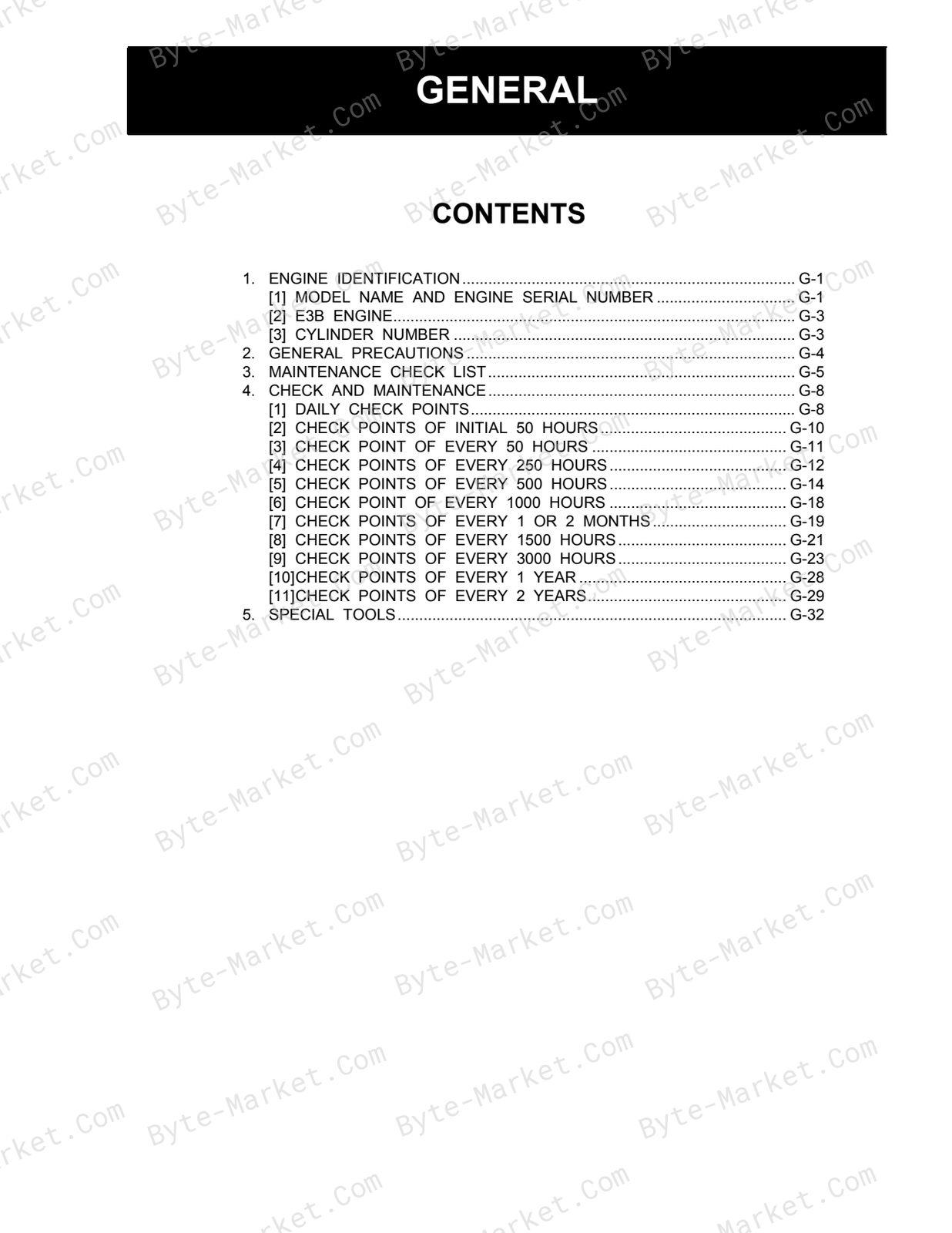

• ENGINE IDENTIFICATION — p. G-1
• [1] MODEL NAME AND ENGINE SERIAL NUMBER — p. G-1
• [2] E3B ENGINE — p. G-3
• [3] CYLINDER NUMBER — p. G-3
• GENERAL PRECAUTIONS — p. G-4
• MAINTENANCE CHECK LIST — p. G-5
• CHECK AND MAINTENANCE — p. G-8
• [1] DAILY CHECK POINTS — p. G-8
• [2] CHECK POINTS OF INITIAL 50 HOURS — p. G-10
• [3] CHECK POINT OF EVERY 50 HOURS — p. G-11
• [4] CHECK POINTS OF EVERY 250 HOURS — p. G-12
• [5] CHECK POINTS OF EVERY 500 HOURS — p. G-14

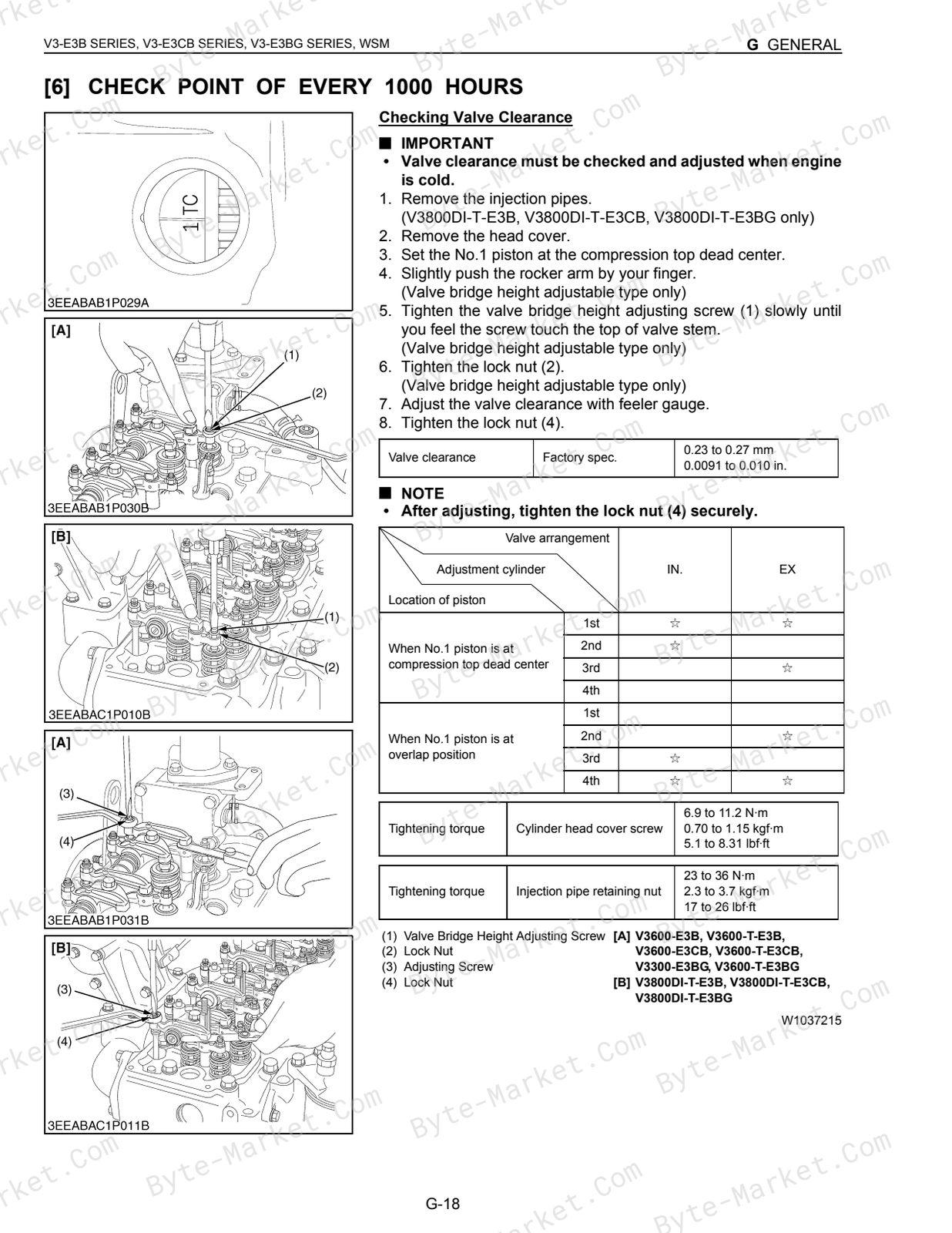

• [6] CHECK POINT OF EVERY 1000 HOURS — p. G-18
• [7] CHECK POINTS OF EVERY 1 OR 2 MONTHS — p. G-19
• [8] CHECK POINTS OF EVERY 1500 HOURS — p. G-21
• [9] CHECK POINTS OF EVERY 3000 HOURS — p. G-23
• [10]CHECK POINTS OF EVERY 1 YEAR — p. G-28
• [11]CHECK POINTS OF EVERY 2 YEARS — p. G-29
• SPECIAL TOOLS — p. G-32
• FEATURE — p. M-1
• ENGINE BODY — p. M-3
• [1] CYLINDER BLOCK — p. M-3
• [2] GEAR TRAIN — p. M-4
• [3] HALF-FLOATING HEAD COVER — p. M-4
• [4] CYLINDER HEAD — p. M-5
  • V3300-E3BG, V3600-T-E3BG) — p. M-6
  • V3800DI-T-E3CB, V3800DI-T-E3BG) — p. M-7
• [7] PISTON (EXCEPT V3300-E3BG) — p. M-8
  • V3600-E3CB, V3600-T-E3CB, V3800DI-T-E3CB) — p. M-8
• LUBRICATING SYSTEM — p. M-9
• [1] OIL COOLER — p. M-9
• COOLING SYSTEM — p. M-10
• [1] THERMOSTAT — p. M-10
• [2] BOTTOM BYPASS SYSTEM — p. M-11
• FUEL SYSTEM — p. M-12
• [1] GOVERNOR (STANDARD MECHANICAL TYPE) — p. M-12
  • E3BG, V3600-T-E3BG, STANDARD FOR V3800DI-T-E3BG) — p. M-14
  • (1) Software Block Diagram — p. M-14
  • (2) Construction — p. M-15
  • (3) Controlling mechanism — p. M-15
  • (4) Emergency Engine Stop Function — p. M-16
  • (5) Main Components — p. M-18
  • (6) Wiring Diagram — p. M-19
  • V3800DI-T-E3BG) — p. M-20
  • V3600-T-E3CB, V3300-E3BG, V3600-T-E3BG) — p. M-22
  • T-E3BG) — p. M-23
  • V3800DI-T-E3BG) — p. M-24
• TURBOCHARGER SYSTEM — p. M-25
  • MODEL) — p. M-25
• INTAKE SYSTEM — p. M-25
  • T-E3BG) — p. M-25
• V3800DI-T-E3BG) — p. M-26
• [1] GENERAL — p. M-26
  • (1) Internal EGR (V3600-T-E3B, V3600-T-E3CB, V3600-T-E3BG) — p. M-26

Capabilities

The source outline indexes checking and adjustment, maintenance tasks, and mechanism explanations. Use these source-backed headings to locate the applicable task or system in the source PDF, then confirm model-specific notes, specifications, illustrations, and operating conditions at the relevant page before carrying out service work.

Keep the source's safety sequence, prerequisite steps, labels, units, configuration notes, and footnotes with the selected task; do not apply an isolated value outside the conditions stated in the manual.

Technical reference

Reference tables include torque settings, wear limits, fluid and system capacities, and dimensions for service checks, adjustment work, and specification lookup. Use the values and conditions in the PDF for the applicable model and procedure.

• Service limits and settings: torque settings and wear limits.
• Fluid reference: fluid and system capacities.
• Machine specifications: dimensions.

Delivery

This manual is supplied as a digital PDF file and is available for instant download after purchase. No physical media is shipped.

References

Kubota Workshop Manual for Engine, document code 9Y121-01041, PDF edition.
