New Holland Boomer 46D/54D CVT Tier 4B (final) Service Manual

No reviews yet. Leave a review Ask a question
New Holland Boomer 46D/54D CVT Tier 4B (final) Service Manual image
1841 pagesComplete manual
294 MbDigital PDF file
EnglishManual language

New Holland Boomer 46D CVT Tier 4B (final) and Boomer 54D CVT Tier 4B (final) Compact Tractor Service Manual

Document number 47851943 · English PDF edition · 1841 pages

About this manual

New Holland's Service Manual groups information for the covered compact tractors by system. The model list appears in Manual details. The contents include Engine and crankcase, Continuously Variable Transmission (CVT), and Mechanical control.

Use the Manual Contents below to check that the exact maintenance, inspection, service, or repair procedure you need is included in this publication.

Manual details

Manufacturer
New Holland
Manual type
Service Manual
Equipment type
Compact Tractor
Models
Boomer 46D CVT Tier 4B (final) and Boomer 54D CVT Tier 4B (final)
Document number
47851943
Edition
1st edition
Publication year
2016
Publication date
February 2016
Language
English
Page count
1841

Product highlights

Electrical systems

The manual includes connector views and pinouts.

Hydraulic systems

The manual includes hydraulic circuit diagrams, hydraulic pressure-test material, and hydraulic valve-adjustment material.

Special tools

A special-tools section is included.

Maintenance

The manual includes a maintenance schedule.

Applicability and key coverage

Named models: Boomer 46D CVT Tier 4B (final) and Boomer 54D CVT Tier 4B (final).

Systems and topics in this manual

Engine

Listed topics include Engine and crankcase, Balancer and damper, and Air cleaners and lines.

Transmission

This section brings together Continuously Variable Transmission (CVT).

Four-Wheel Drive (4WD) system

The contents identify Mechanical control in this section.

Front axle system

Listed topics include Powered front axle, Front bevel gear set and differential, and Final drives.

Rear axle system

This section brings together Powered rear axle and Rear bevel gear set and differential.

Power Take-Off (PTO)

The contents identify Rear electro-hydraulic control, One-speed rear Power Take-Off (PTO), and Central Power Take-Off (PTO) in this section.

Brakes and controls

Listed topics include Parking brake or parking lock and Mechanical service brakes.

Hydraulic systems

This section brings together Fixed displacement pump, Remote control valves, and Reservoir, cooler, and filters.

Steering

The contents identify Hydraulic control components, Pump, and Cylinders in this section.

Cab climate control

Listed topics include Heating, Ventilation, and Air conditioning.

Electrical systems

This section brings together Electrical system, Transmission control system, and Harnesses and connectors.

Platform, cab, bodywork, and decals

The contents identify Engine hood and panels, Fenders and guards, and Pneumatically-adjusted operator seat in this section.

Manual contents

Use these source headings to locate the task or system you need in the PDF.

  • INTRODUCTION — p. 9
    • Foreword — p. 3
    • Safety rules — p. 4
    • Safety rules Service precautionary statements — p. 9
    • Basic instructions - Important notice regarding equipment servicing — p. 18
    • Basic instructions - Shop and Assembly — p. 19

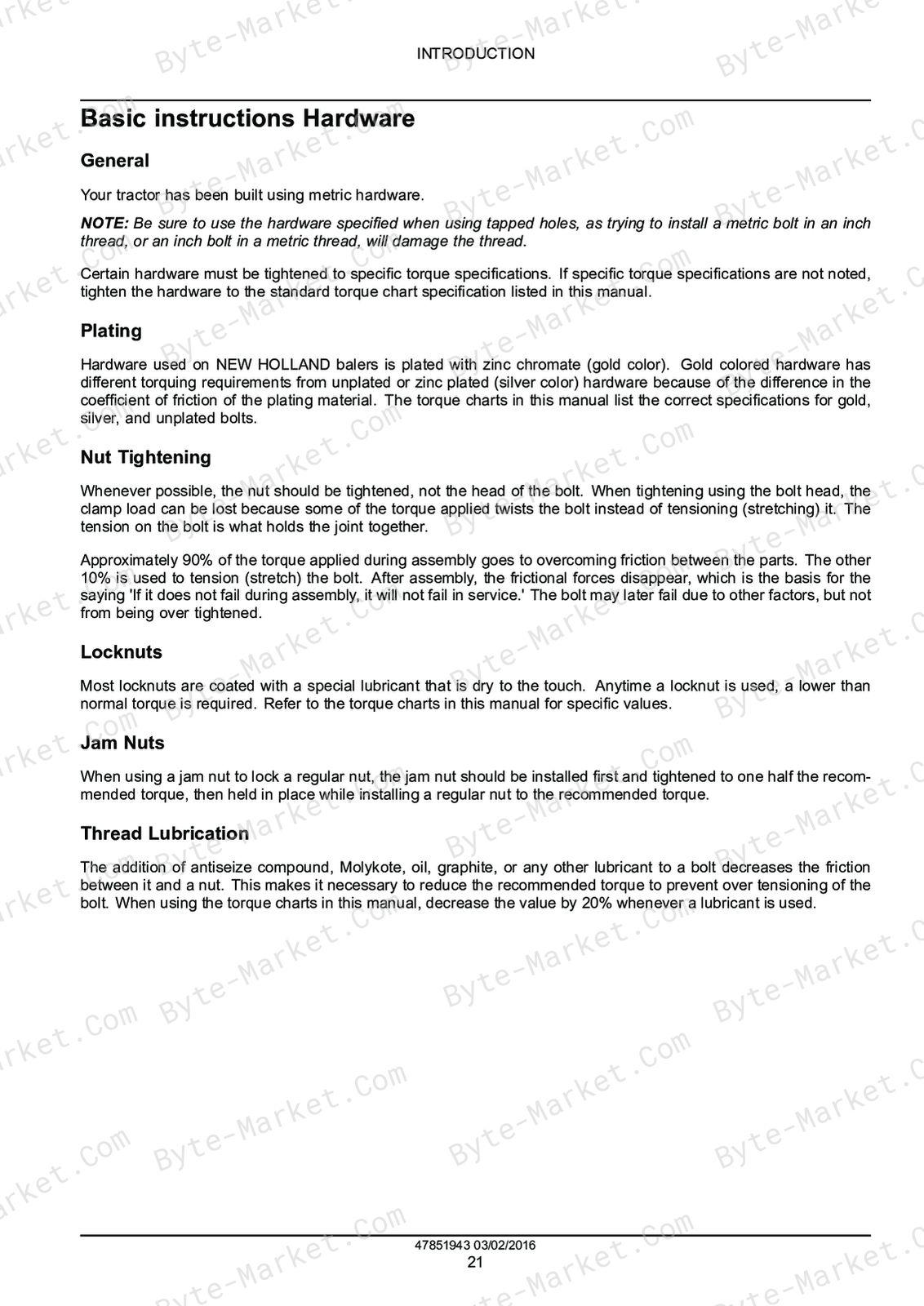

    • Basic instructions Hardware — p. 21
    • Special tools — p. 22
    • Torque Wheel Bolt Torques — p. 23
    • Torque — p. 24
    • Special tools — p. 28
    • Basic instructions Tire ballast and pressures — p. 29
    • International symbols — p. 30
    • Torque Specification Tables — p. 31
    • General specification Tire Pressures — p. 36
    • General specification — p. 37
    • Capacities — p. 38
    • General specification — p. 39
    • Weight — p. 44
    • General specification — p. 45
    • Dimension General — p. 46
    • General specification wheel tread settings — p. 50
    • Consumables — p. 51
    • Product identification General information — p. 52
  • Engine - 10 — p. 63

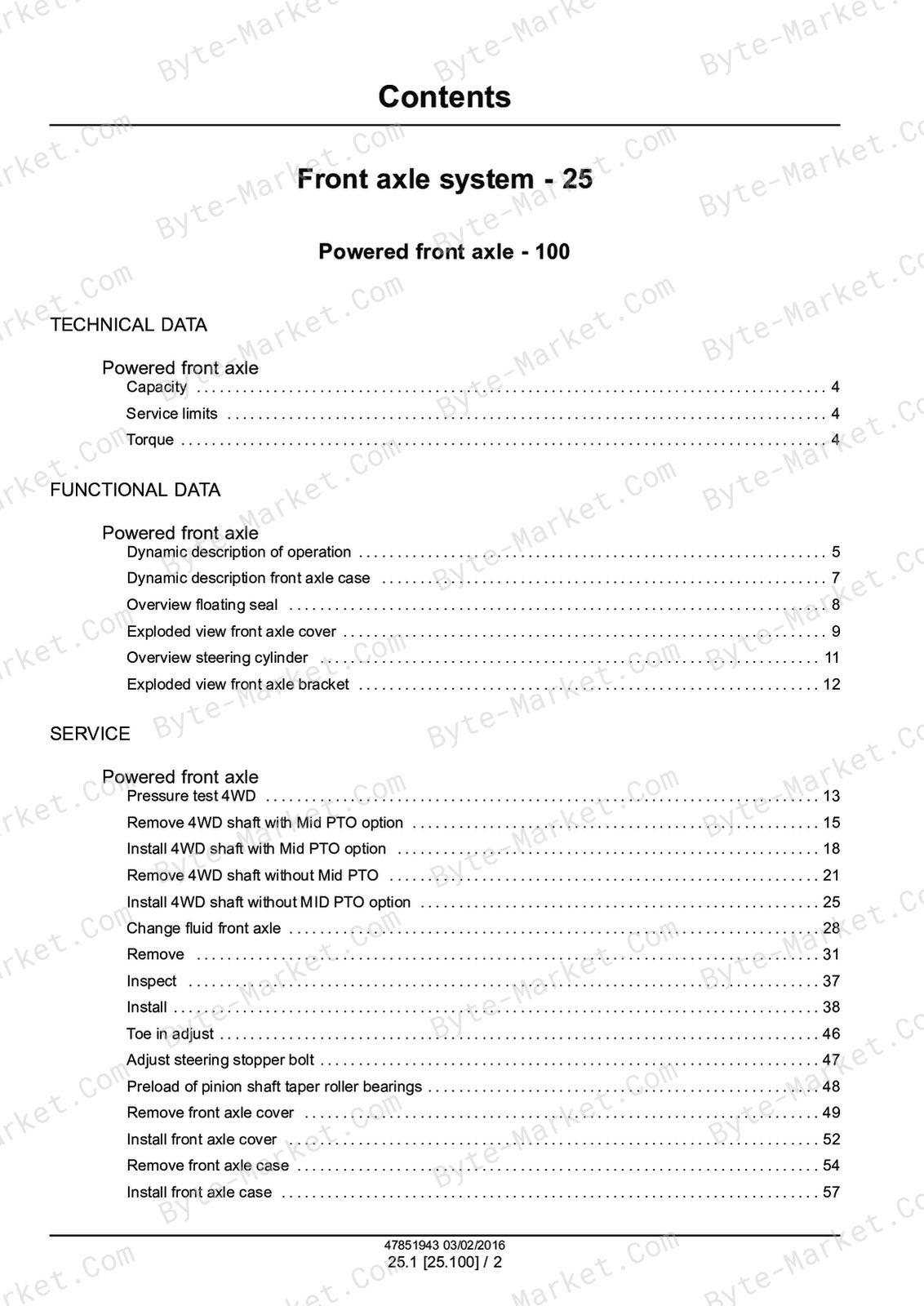

    • [10.001] Engine and crankcase — p. 10.1
    • [10.110] Balancer and damper — p. 10.2
    • [10.202] Air cleaners and lines — p. 10.3
    • [10.400] Engine cooling system — p. 10.4
    • [10.501] Exhaust Gas Recirculation (EGR) exhaust treatment — p. 10.5
  • Transmission - 21 — p. 117
    • [21.504] Continuously Variable Transmission (CVT) — p. 21.1
  • Four-Wheel Drive (4WD) system - 23 — p. 257
    • [23.101] Mechanical control — p. 23.1
  • Front axle system - 25 — p. 273
    • [25.100] Powered front axle — p. 25.1
    • [25.102] Front bevel gear set and differential — p. 25.2
    • [25.310] Final drives — p. 25.3
  • Rear axle system - 27 — p. 383
    • [27.100] Powered rear axle — p. 27.1
    • [27.106] Rear bevel gear set and differential — p. 27.2
  • Power Take-Off (PTO) - 31 — p. 445
    • [31.104] Rear electro-hydraulic control — p. 31.1
    • [31.110] One-speed rear Power Take-Off (PTO) — p. 31.2
    • [31.120] Central Power Take-Off (PTO) — p. 31.3
  • Brakes and controls - 33 — p. 515
    • [33.110] Parking brake or parking lock — p. 33.1
    • [33.120] Mechanical service brakes — p. 33.2
  • Hydraulic systems - 35 — p. 551
    • [35.000] Hydraulic systems — p. 35.1
    • [35.104] Fixed displacement pump — p. 35.2
    • [35.204] Remote control valves — p. 35.3
    • [35.300] Reservoir, cooler, and filters — p. 35.4
  • Steering - 41 — p. 705
    • [41.200] Hydraulic control components — p. 41.1
    • [41.206] Pump — p. 41.2
    • [41.216] Cylinders — p. 41.3
  • Cab climate control - 50 — p. 759
    • [50.100] Heating — p. 50.1
    • [50.104] Ventilation — p. 50.2
    • [50.200] Air conditioning — p. 50.3
  • Electrical systems - 55 — p. 885
    • [55.000] Electrical system — p. 55.1
    • [55.024] Transmission control system — p. 55.2
    • [55.100] Harnesses and connectors — p. 55.3
    • [55.201] Engine starting system — p. 55.4
    • [55.301] Alternator — p. 55.5
    • [55.302] Battery — p. 55.6
    • [55.404] External lighting — p. 55.7
    • [55.408] Warning indicators, alarms, and instruments — p. 55.8
    • [55.518] Wiper and washer system — p. 55.9
    • [55.640] Electronic modules — p. 55.10
    • [55.DTC] FAULT CODES — p. 55.11
  • Platform, cab, bodywork, and decals - 90 — p. 1767
    • [90.100] Engine hood and panels — p. 90.1
    • [90.116] Fenders and guards — p. 90.2
    • [90.124] Pneumatically-adjusted operator seat — p. 90.3
    • [90.150] Cab — p. 90.4
    • [90.151] Cab interior — p. 90.5
    • [90.154] Cab doors and hatches — p. 90.6
  • Electrical Schematic Poster - Cab - 47906736 — p. 1836
  • Electrical Schematic Poster - ROPS - 47906738 — p. 1839

Capabilities

The source outline indexes servicing instructions. Use these source-backed headings to locate the applicable service or repair topic in the source PDF, then confirm model-specific notes, specifications, illustrations, and operating conditions at the relevant page before carrying out service or repair work.

Keep the source's safety sequence, prerequisite steps, labels, units, configuration notes, and footnotes with the selected task; do not apply an isolated value outside the conditions stated in the manual.

Delivery

This manual is supplied as a digital PDF file and is available for instant download after purchase. No physical media is shipped.

References

New Holland Service Manual for Compact Tractor, document code 47851943, PDF edition.
