Kubota L3800 Workshop Manual — 9Y011-13601

About this manual

Kubota published this Workshop Manual for the L3800 tractor models. It brings the documented service and technical-reference material for those named tractors into a single publication.

The manual is especially useful for work that crosses electrical and hydraulic systems: it includes electrical troubleshooting with connector views and pinouts, alongside hydraulic diagrams, pressure-test evidence, and valve-adjustment information.

Use the Manual Contents below to check that the exact repair, inspection, or maintenance procedure you need is included in this publication.

Manual details

Manufacturer

Kubota

Manual type

Workshop Manual

Models

L3800

Document number

9Y011-13601

Language

English

Page count

321

Product highlights

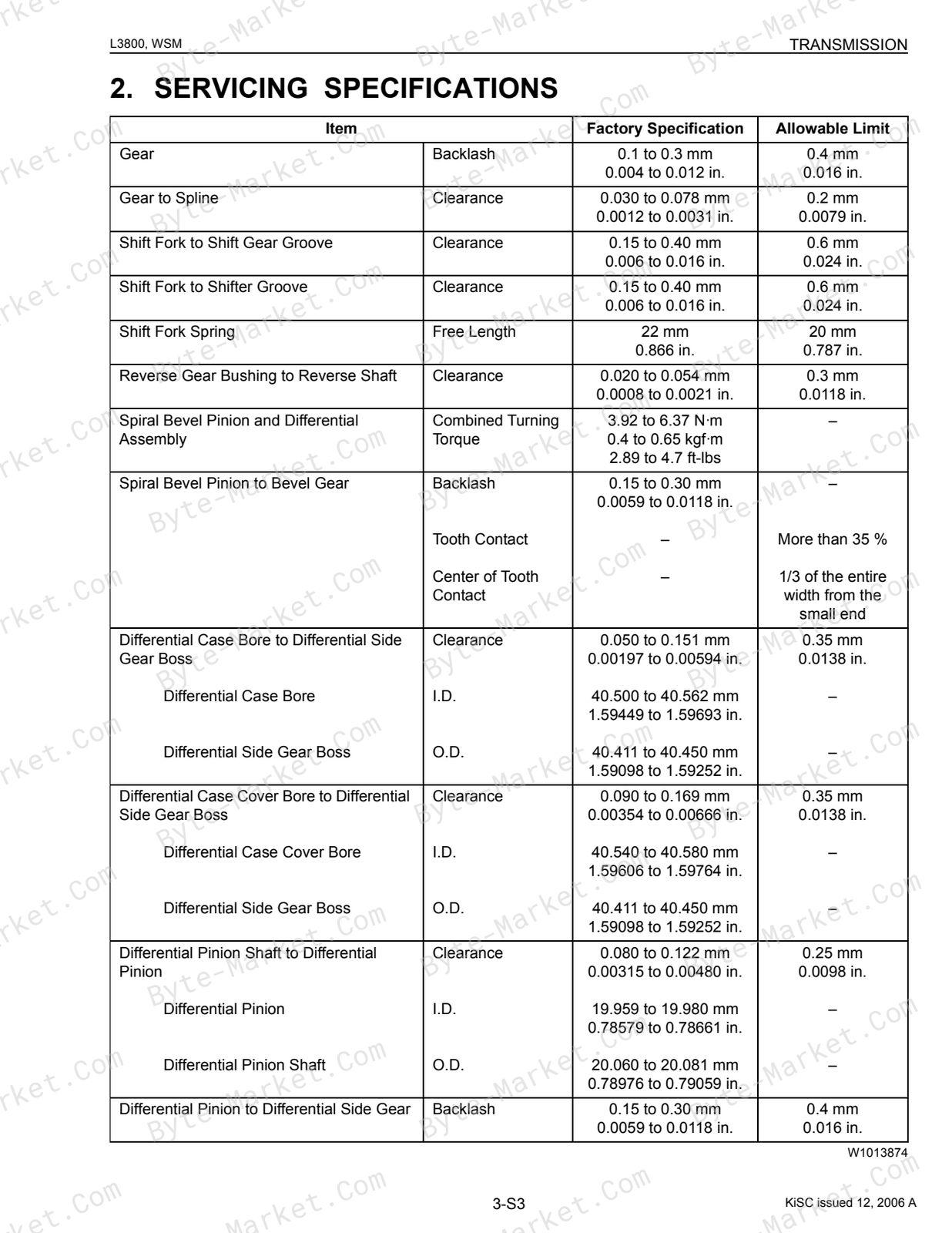

Specifications and settings

The manual includes reference information for wear limits and dimensions.

Manual contents

Use these source headings to locate the task or system you need in the PDF.

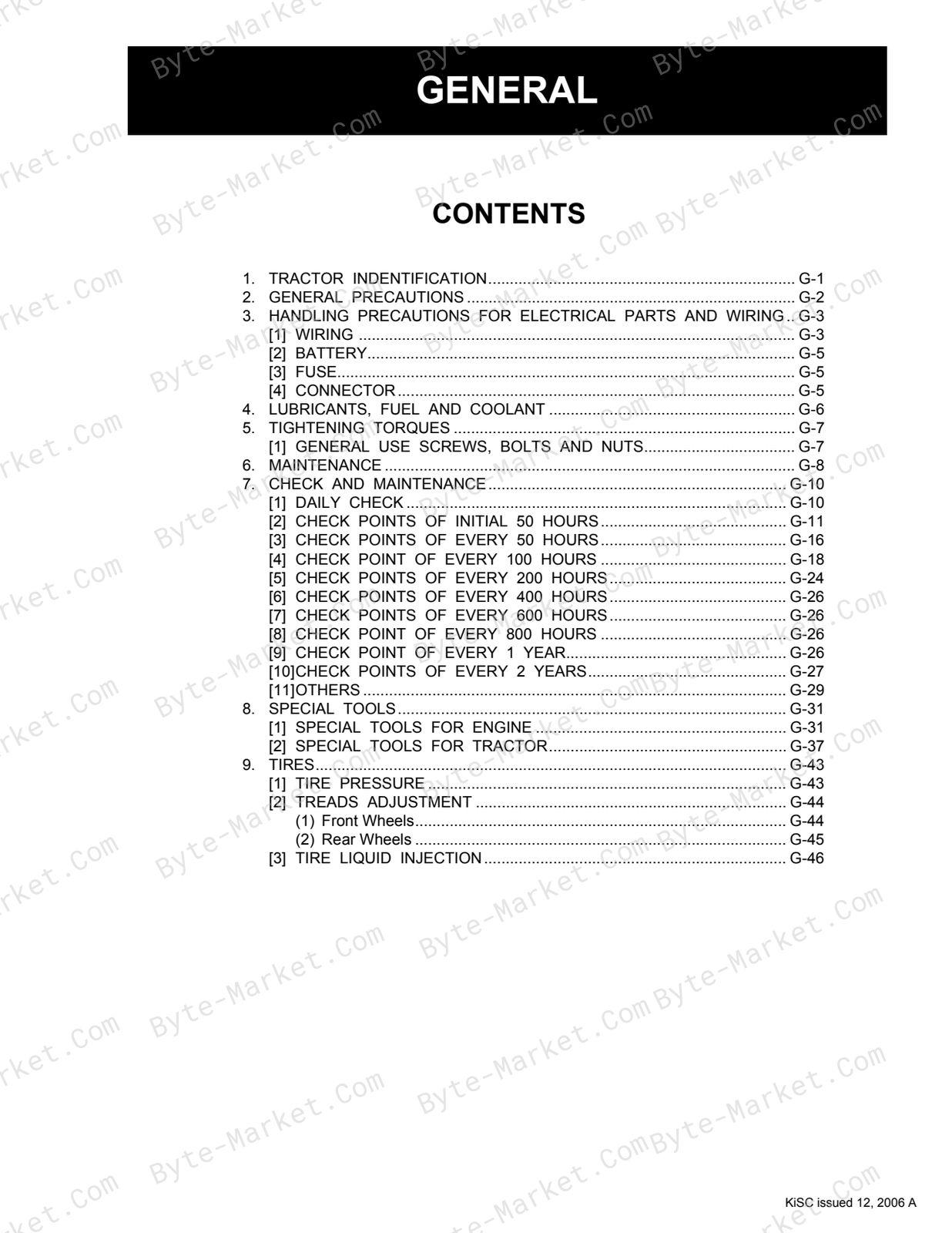

• TO THE READER — p. 1
• G GENERAL — p. 14
  • GENERAL — p. 15
• 1 ENGINE — p. 64
  • MECHANISM — p. 65
  • SERVICING — p. 71
• 2 CLUTCH — p. 131
  • MECHANISM — p. 132
  • SERVICING — p. 134
• 3 TRANSMISSION — p. 148
  • MECHANISM — p. 149
  • SERVICING — p. 151
• 4 REAR AXLE — p. 184
  • MECHANISM — p. 185
  • SERVICING — p. 187
• 5 BRAKES — p. 195
  • MECHANISM — p. 196
  • SERVICING — p. 199
• 6 FRONT AXLE — p. 210
  • MECHANISM — p. 211
  • SERVICING — p. 213
• 7 STEERING — p. 232
  • MECHANISM — p. 233
  • SERVICING — p. 238
• 8 HYDRAULIC SYSTEM — p. 248
  • MECHANISM — p. 249
  • SERVICING — p. 261
• 9 ELECTRICAL SYSTEM — p. 287
  • MECHANISM — p. 288
  • SERVICING — p. 290

Capabilities

The source outline separates mechanism explanations from servicing instructions for Engine, Clutch, Transmission, Rear Axle, Brakes, Front Axle, Steering, Hydraulic System, and Electrical System. Use these indexed headings to locate the applicable system in the source PDF, then confirm model-specific notes, specifications, illustrations, and operating conditions at the relevant page before carrying out service work.

Keep the source's safety sequence, prerequisite steps, labels, units, configuration notes, and footnotes with the selected task; do not apply an isolated value outside the conditions stated in the manual.

Technical reference

Reference tables include wear limits and dimensions for service checks, adjustment work, and specification lookup. Use the values and conditions in the PDF for the applicable model and procedure.

• Service limits and settings: wear limits.
• Machine specifications: dimensions.

Delivery

This manual is supplied as a digital PDF file and is available for instant download after purchase. No physical media is shipped.

References

Kubota Workshop Manual for Tractor, document code 9Y011-13601, PDF edition.
